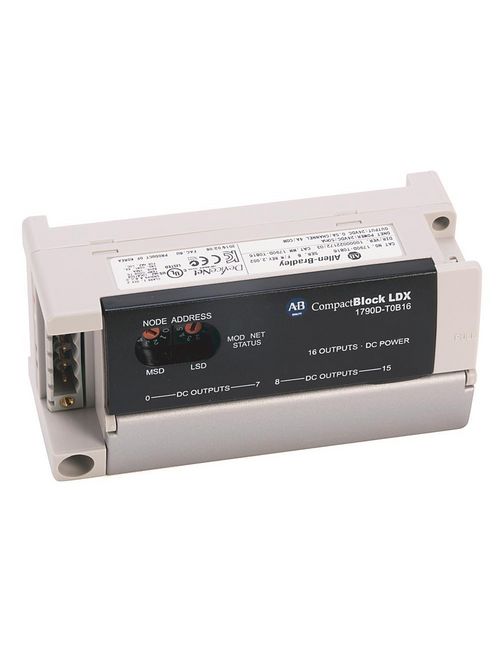

Allen-Bradley 1790D-T0B16 Compactblock LDX 16-Point O/P Base Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-DIO
Mfg Catalog # 1790D-T0B16
North Coast Part # 151072


  • Allows addition of expansion blocks to a base block for up to 80 points per node
  • Offers base blocks that provide 4…32 I/O points
  • Includes built-in DeviceNet™ network connectivity
  • Includes node address switches and autobaud rate detection which simplifies network commissioning
  • Includes universal sink/source inputs which reduce the number of components to stock and provide flexibility of input types
  • Includes compact package for easy installation in confined areas, including wireways and operator terminals
  • Offers choice of fixed screw terminals, or D-shell connector for convenient disconnection


  • Sub Brand: CompactBLOCK LDX
  • Type: DC Output Source Base, Terminal Block
  • Application: In-Cabinet
  • Communication: DeviceNet
  • Power Supply: 24V DC
  • Enclosure: IP20
  • Mounting: Din-rail, Panel
  • Temperature Rating: 0...55 °C (32...131 °F)
  • Isolation Voltage: 50V DC (continuous), Reinforced Insulation. Type tested at 1250 V AC for 60 seconds, I/O to system. No isolation between individual I/O channels
  • Output: 16 Point

Digital I/O Base Blocks

  • Digital Output Base Blocks: DeviceNet LDX I/O, 24VDC, 16 Source Out Base Block, Screw-clamp


UPC 61259828358
Item Long Description CompactBlock LDX 16 Point O/P Base Block
GTiN 00612598283583
Type 24V DC Output Base Block
Applications In-Cabinet
Mounting Type Din-Rail, Panel
Temperature Rating 32-131 degrees F
Family Brand Name Allen Bradley
Output 16 Point
Power Supply 24V DC
Enclosure IP20
Sub Brand CompactBLOCK LDX
Standard C-TICK
