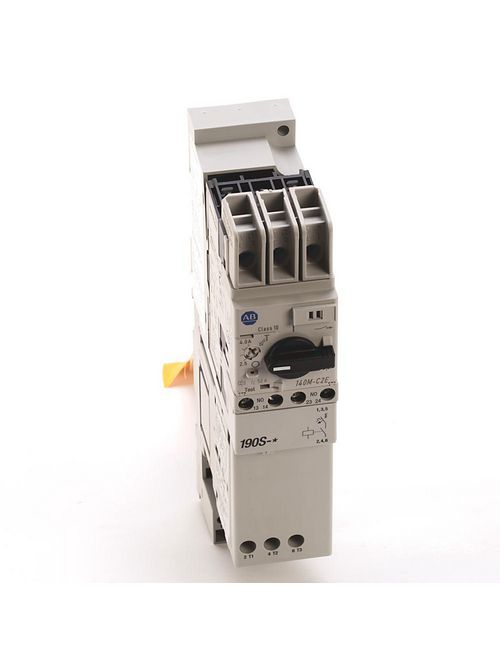

Allen-Bradley 190S-CND2-CC16C-KN 10-16 A Comp

Features

• Non-reversing (Bulletin 190S) and reversing (Bulletin 191S)
• Non-reversing (Bulletin 103) and reversing (Bulletin 107)
• cULus Listed Type F Combination Motor Controllers Type 1 & 2 Coordination
• Non-reversing (Bulletin 190E) and reversing (Bulletin 191E)

Specifications

• Type: 190S - Compact Combination Starter w/ Circuit Breaker
• Motor Current Adjustment Range (A): 10...16
• Max. Fuse or Circuit Breaker per NEC (A): 450
• Max. kW, 50 Hz (500V): 7.5
• Max. Hp, 60 Hz (460V): 7-1/2...10
• Max. Hp, 60 Hz (575V): 10
• Max. kW, 50 Hz (400V): 7.5
• Max. Hp, 60 Hz (200V): 3...5

General Starter Data

• Short Circuit Coordination: Type 1
• Starter Type: 190S - Compact Combination Starter w/ Circuit Breaker

Control Circuit Data

• Contactor Size: 100-C16
• Auxiliary Contacts: 1 N.O. 0 N.C.

Circuit Breaker Data

• Frame Size: 140M-C2E (C-Frame), High Break
• Overload Relay Amperage Rating: 10 - 16 A
• Auxiliary Contacts: Internal Auxiliary Contact 1 N.O. + 1 N.C.

Options

• Optional Selections: Lockable Twist Knob black

Manufacturing

• Assembly: Factory Assembled
