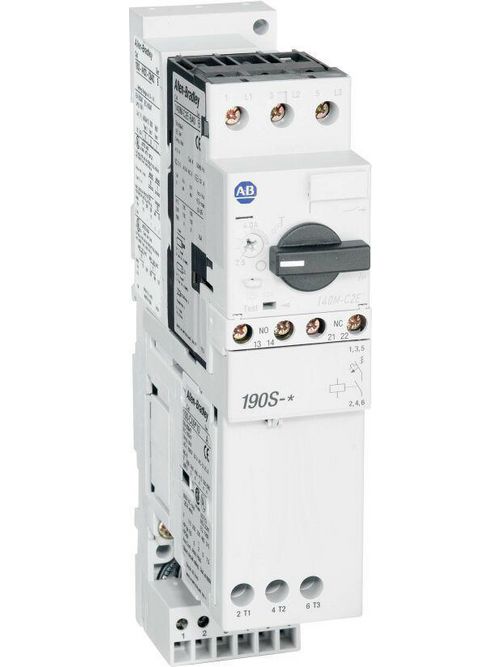

Allen-Bradley 190S-DND2-DC25C-KN 18-25 A Comp

Specifications

General Starter Data

• Short Circuit Coordination: Type 1
• Starter Type: 190S - Compact Combination Starter w/ Circuit Breaker

• Type: 190S - Compact Combination Starter w/ Circuit Breaker
• Motor Current Adjustment Range (A): 18...23
• Max. Fuse or Circuit Breaker per NEC (A): 450
• Max. kW, 50 Hz (500V): 13
• Max. Hp, 60 Hz (460V): 15
• Max. Hp, 60 Hz (575V): 15
• Max. kW, 50 Hz (230V): 6.3
• Max. kW, 50 Hz (400V): 11
• Max. Hp, 60 Hz (230V): 7-1/2

Control Circuit Data

• Contactor Size: 100-C23
• Auxiliary Contacts: 1 N.O. 0 N.C.

Circuit Breaker Data

• Frame Size: 140M-D8E (D-Frame), High Break Plus
• Overload Relay Amperage Rating: 18 - 25 A
• Auxiliary Contacts: Internal Auxiliary Contact 1 N.O. + 1 N.C.

Options

• Optional Selections: Lockable Twist Knob black

Manufacturing

• Assembly: Factory Assembled

Features

• Non-reversing (Bulletin 190E) and reversing (Bulletin 191E)
• Non-reversing (Bulletin 190S) and reversing (Bulletin 191S)
• cULus Listed Type F Combination Motor Controllers Type 1 & 2 Coordination
• Non-reversing (Bulletin 103) and reversing (Bulletin 107)
