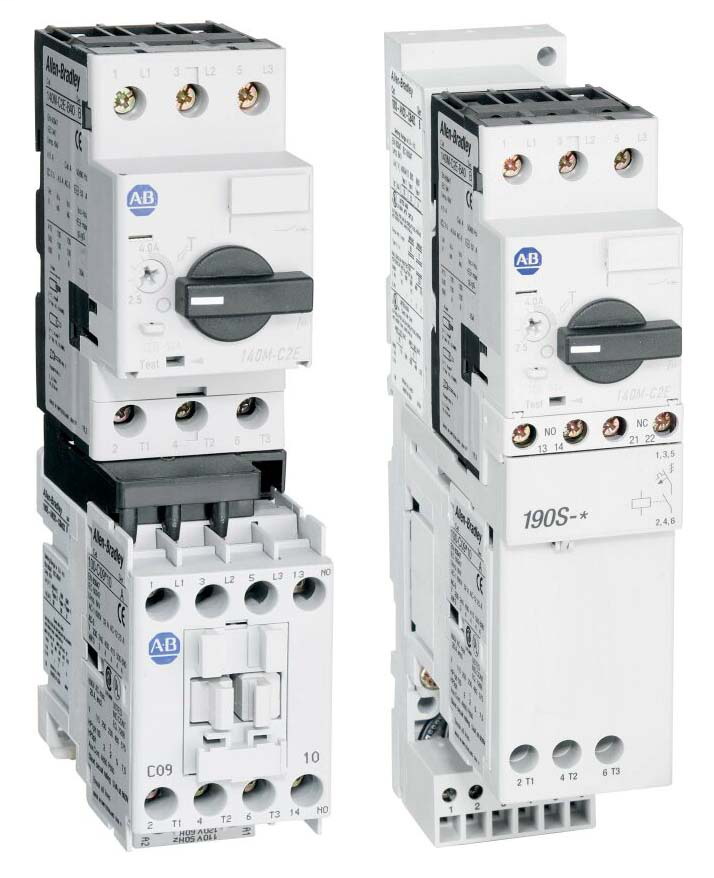

A-B 190S-ENEJ3-FC32C 23-32 A Compac

Features

• Non-reversing (Bulletin 103) and reversing (Bulletin 107)
• Non-reversing (Bulletin 190S) and reversing (Bulletin 191S)
• Non-reversing (Bulletin 190E) and reversing (Bulletin 191E)
• cULus Listed Type F Combination Motor Controllers Type 1 & 2 Coordination

Specifications

• Type: 190S - Compact Combination Starter w/ Circuit Breaker
• Motor Current Adjustment Range (A): 23...30
• Max. Fuse or Circuit Breaker per NEC (A): 600
• Max. kW, 50 Hz (500V): 15
• Max. Hp, 60 Hz (460V): 20
• Max. Hp, 60 Hz (575V): 25
• Max. kW, 50 Hz (230V): 7.5
• Max. kW, 50 Hz (400V): 15
• Max. Hp, 60 Hz (200V): 7-1/2
• Max. Hp, 60 Hz (230V): 10

General Starter Data

• Short Circuit Coordination: Type 1
• Starter Type: 190S - Compact Combination Starter w/ Circuit Breaker

Control Circuit Data

• Contactor Size: 100-C30
• Coil Voltage: 24V DC Electronic Coil
• Auxiliary Contacts: 1 N.O. 1 N.C.

Circuit Breaker Data

• Frame Size: 140M-F8E (F-Frame), High Break Plus
• Overload Relay Amperage Rating: 23 - 32 A
• Auxiliary Contacts: Internal Auxiliary Contact 1 N.O. + 1 N.C.

Manufacturing

• Assembly: Factory Assembled
