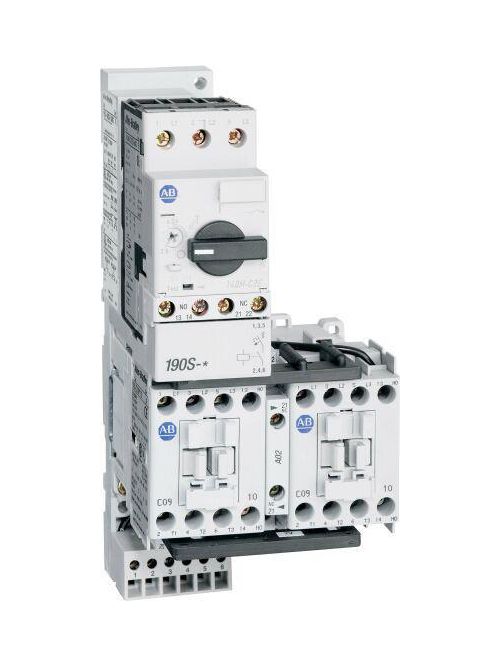

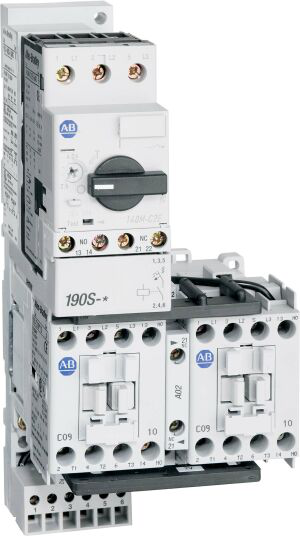

Allen-Bradley 191S-AND3-CB25C 1.6-2.5 A Compa
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$854.86/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 191S-AND3-CB25C
North Coast Part # 665570

Features

  • Non-reversing (Bulletin 190S) and reversing (Bulletin 191S)
  • Non-reversing (Bulletin 103) and reversing (Bulletin 107)
  • Non-reversing (Bulletin 190E) and reversing (Bulletin 191E)
  • cULus Listed Type F Combination Motor Controllers Type 1 & 2 Coordination

Specifications

  • Type: 191S - Reversing Compact Combination Starter w/ Circuit Breaker
  • Motor Current Adjustment Range (A): 1.6...2.5
  • Max. Fuse or Circuit Breaker per NEC (A): 450
  • Max. kW, 50 Hz (500V): 1.1
  • Max. kW, 50 Hz (690V): 1.8
  • Max. kW, 50 Hz (230V): 0.55
  • Max. kW, 50 Hz (400V): 0.75
  • Max. Hp, 60 Hz (460V): 3/4...1-1/2
  • Max. Hp, 60 Hz (575V): 1...2
  • Max. Hp, 60 Hz (200V): 1/2
  • Max. Hp, 60 Hz (230V): 1/2...3/4

General Starter Data

  • Short Circuit Coordination: Type 1
  • Starter Type: 191S - Reversing Compact Combination Starter w/ Circuit Breaker

Control Circuit Data

  • Contactor Size: 100-C09
  • Auxiliary Contact Configuration: 1 N.O. 1 N.C.

Circuit Breaker Data

  • Frame Size: 140M-C2E (C-Frame), High Break
  • Overload Relay Amperage Rating: 1.6 - 2.5 A
  • Auxiliary Contacts: Internal Auxiliary Contact 1 N.O. + 1 N.C.

Manufacturing

  • Assembly: Factory Assembled

Overview

GTiN 00611320412581
Family Brand Name Allen Bradley
Start Type 191S - Reversing Compact Combination Starter W/ Circuit Breaker
Contactor Size 100-C09
Product UPC 61132041258
Standard KC
