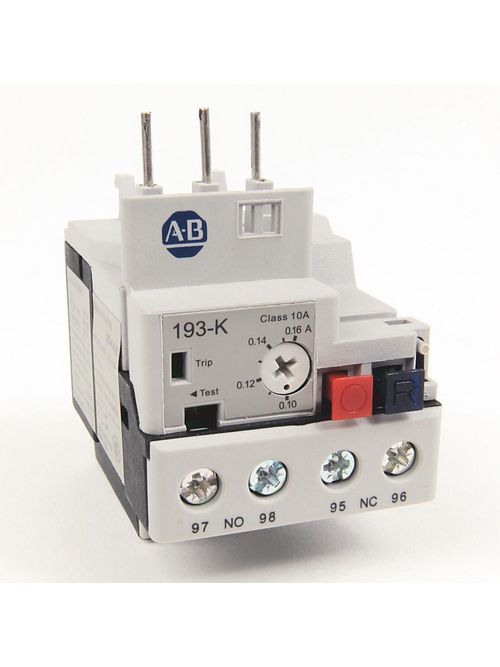

A-B 193-KA80 0.55-.80 A IEC Bimetal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$61.05/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 193-KA80
North Coast Part # 606229

Features

  • Includes trip class 10A
  • Provides phase-loss sensitivity
  • Includes a stop button
  • Includes a trip indicator
  • Available only in IEC configurations
  • Includes test release functionality
  • Offers Manual/Auto reset button
  • Includes ambient temperature compensation
  • Provides standard protection for AC and DC motors

Specifications

Overload Relay Data

  • Setting Range [A]: 0.55...0.80
  • Mounts to...: 100-K05...100-K12 Contactor

Categories

Overview

UPC 66207453331
Item Long Description 0.55-.80 A IEC Bimetallic Overload Relay
GTiN 00662074533312
Type Miniature, Bimetallic, Automatic and Manual Reset
Applications Mounts 100-K05K12 Contactor
Range 0.55...0.80
Family Brand Name Allen Bradley
Class Class 10A
Trip Range 0.55-0.80
Sub Brand 193
Terminal Type M3.5 Screw
Wire Size (2) 16-12 AWG
Temperature Rating -20 to 60 C
Enclosure Type NEMA 1, 2, IP2X
Power Rating 6 W
Blade Dimensions 1.7812 in W x 1.9687 in H x 3.1093 in D
Standard CCC,CE,KC
