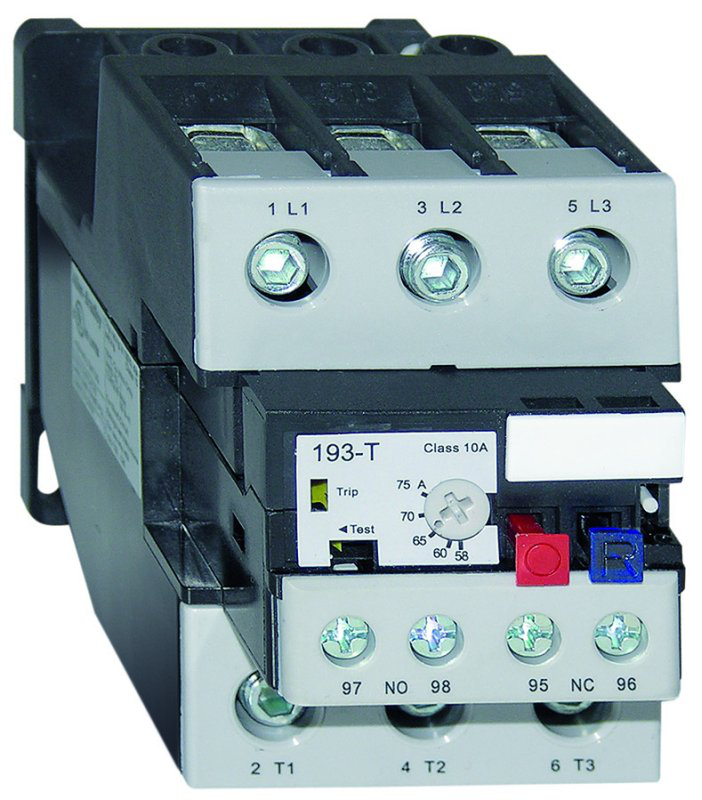

Allen-Bradley 193-T1DC60P 45-60 A IEC Bimetal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$167.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 193-T1DC60P
North Coast Part # 670583

Features

  • Available only in IEC configurations
  • Optional remote reset solenoid and external reset accessories
  • Trip indicator
  • Test function for auxiliary contacts
  • Ambient temperature compensation
  • Trip class 10/10A
  • Manual/automatic reset mode
  • Phase-loss protection
  • Auxiliary contacts (1 N.O. and 1 N.C.)

Specifications

Mounting Data

  • Separate Mounting: Yes

Overload Relay Data

  • Full Load Current Range (A): 45.0-60.0A

Categories

Overview

UPC 66207497652
Item Long Description 45-60 A IEC Bimetallic Overload Relay
GTiN 00662074976522
Type Bimetallic, Automatic/Manual Reset
Family Brand Name Allen Bradley
Sub Brand 193
Terminal Type M6 Screw
Temperature Rating ?20 to 60 C
Class Class 10
Enclosure Type IP2X
Power Rating 18 W
Contact Configuration 1 NO, 1 NC Auxiliary
Blade Dimensions 72 mm W x 191 mm H x 125.5 mm D
Standard CCC,KC
