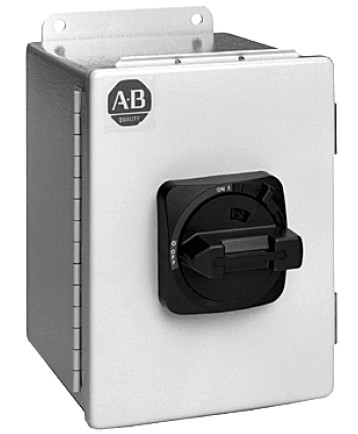

Allen-Bradley 194E-AA20EX-P11-PE-6 194E Load
$592.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 194E-AA20EX-P11-PE-6
North Coast Part # 1163067

Specifications

Switch Data

  • Size: 25 A
  • Enclosure Type: NEMA Type 1 - IP54 Painted Steel
  • Installation: Base / DIN Rail
  • Pole Configuration: 6 Poles
  • Enclosure Size: Oversized Enclosure
  • Configuration: OFF-ON 90°

Actuator Data

  • Handle Color: Red / Yellow

Enclosed Switch Modifications

  • Left Side Modifications: Auxiliary Contact (1 N.O. 1 N.C.)
  • Right Side Modifications: Earthing Terminal (Ground)

Categories

Overview

UPC 88717238759
GTiN 00887172387593
Family Brand Name Allen Bradley
NEMA 1
IP Rating IP54
Number of Poles 6 Pole
Finish Painted
Color Red/Yellow Handle
Type Enclosed
Mounting Type Base
Wire Size (1) 14-8 AWG, (2) 14-10 AWG Rigid Wire, (1) 14-8 AWG, (2) 14-10 AWG Fine Strands
Temperature Rating -25 to 60 C Operating
Housing Material Steel
Contact Configuration 1 NO, 1 NC Auxiliary
Blade Dimensions 6-15/16 in W x 7-7/8 in D x 9-1/2 in H
Environmental Conditions -40 to 80 C Storage
Load Rating 11 kW at 690 VAC
Operating Cycles 200000
