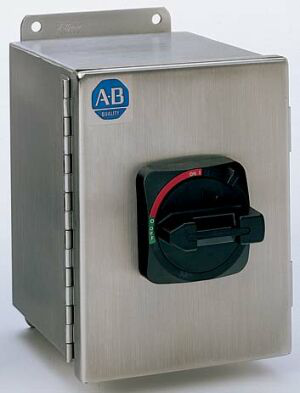

Allen Bradley 194E-CA32E-P11 Load Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$997.50/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 194E-CA32E-P11
North Coast Part # 821087

Specifications

  • Mounting: Base / DIN Rail
  • Number Of Poles: 3 Poles
  • Type: OFF-ON 90°

Switch Data

  • Size: 32 A
  • Enclosure Type: NEMA Type 4/4X - IP66 Stainless Steel (Rectangular)
  • Installation: Base / DIN Rail
  • Pole Configuration: 3 Poles
  • Enclosure Size: Standard Size Enclosure
  • Configuration: OFF-ON 90°

Actuator Data

  • Handle Color: Red / Yellow

Enclosed Switch Modifications

  • Left Side Modifications: Auxiliary Contact (1 N.O. 1 N.C.)
  • Right Side Modifications: No Modification

Categories

Overview

UPC 66207298789
Item Long Description 194E Load switch
GTiN 00662072987896
Mounting Type Base
Family Brand Name Allen Bradley
NEMA 4,4X
IP Rating IP66
Number of Poles 3 Pole
Color Red/Yellow Handle
Type Enclosed
Wire Size (1) 14-8 AWG, (2) 14-10 AWG Rigid Wire, (1) 14-8 AWG, (2) 14-10 AWG Fine Strands
Temperature Rating -25 to 60 C Operating
Housing Material Stainless Steel
Contact Configuration 1 NO, 1 NC Auxiliary
Blade Dimensions 4-15/16 in W x 7-23/64 in D x 7-1/2 in H
Environmental Conditions -40 to 80 C Storage
Load Rating 15 kW at 690 VAC
Operating Cycles 200000
