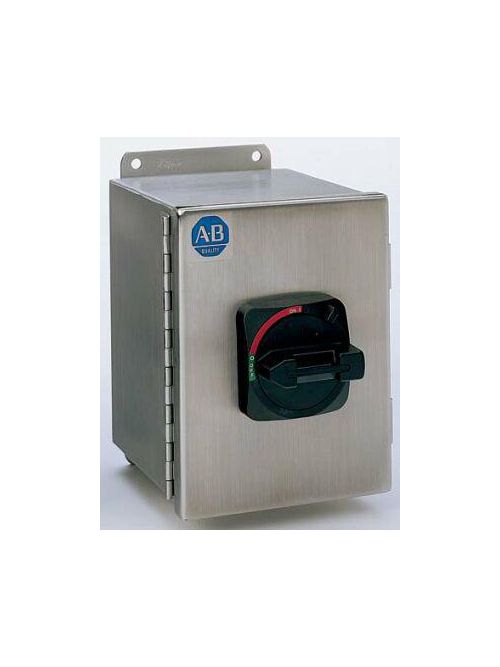

Allen-Bradley 194E-CA63E 194E Load switch
Product image thumbnail 0
Product image thumbnail 1
$1,001.49/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 194E-CA63E
North Coast Part # 663262

Features

  • Positive-Guided Actuation
  • Suitable as At-Motor Disconnect Switch (UL508)
  • Padlockable Handles Available (up to 3 padlocks)
  • Front/Door or DIN/Base Mounting Configurations
  • Optional Thermoplastic Enclosures
  • IP2LX Finger-Safe Terminals
  • IP66/ UL Type 1/3/3R/12 Operating Handles
  • 3- and 6-Pole Enclosed Switches

Specifications

  • Mounting: Base / DIN Rail
  • Number Of Poles: 3 Poles
  • Type: OFF-ON 90°

Switch Data

  • Size: 63 A
  • Enclosure Type: NEMA Type 4/4X - IP66 Stainless Steel (Rectangular)
  • Installation: Base / DIN Rail
  • Pole Configuration: 3 Poles
  • Enclosure Size: Standard Size Enclosure
  • Configuration: OFF-ON 90°

Actuator Data

  • Handle Color: Red / Yellow

Enclosed Switch Modifications

  • Left Side Modifications: No Modification
  • Right Side Modifications: No Modification

Overview

UPC 66246862625
GTiN 00662468626255
Mounting Type Base
Family Brand Name Allen Bradley
NEMA 4,4X
IP Rating IP66
Number of Poles 3 Pole
Color Red/Yellow Handle
Type Enclosed
Wire Size (1) 12-4 AWG, (2) 12-8 AWG Rigid Wire, (1) 12-4 AWG, (2) 12-8 AWG Fine Strands
Temperature Rating -25 to 60 C Operating
Housing Material Stainless Steel
Blade Dimensions 4-15/16 in W x 7-23/64 in D x 7-1/2 in H
Environmental Conditions -40 to 80 C Storage
Load Rating 22 kW at 690 VAC
Operating Cycles 200000
