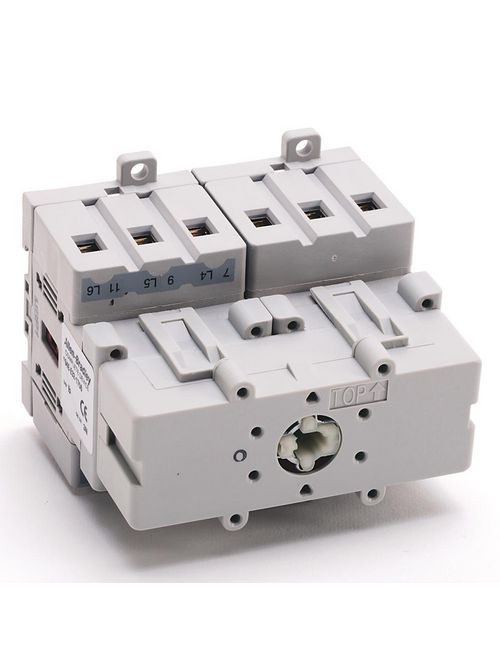

Allen-Bradley 194E-E32-1756 Load Switch
Product image thumbnail 0
Product image thumbnail 1
$198.50/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 194E-E32-1756
North Coast Part # 665192

Features

  • IP66/ UL Type 1/3/3R/12 Operating Handles
  • Suitable as At-Motor Disconnect Switch (UL508)
  • IP2LX Finger-Safe Terminals
  • 3- and 6-Pole Enclosed Switches
  • Optional Thermoplastic Enclosures
  • Padlockable Handles Available (up to 3 padlocks)
  • Front/Door or DIN/Base Mounting Configurations
  • Positive-Guided Actuation

Specifications

  • Mounting: Front / Door
  • Number Of Poles: 6 Poles
  • Type: OFF-ON 90°
  • Actuator: Select actuator separately

Switch Data

  • Size: 32 A
  • Enclosure Type: Open
  • Installation: Front / Door
  • Pole Configuration: 6 Poles
  • Configuration: OFF-ON 90°

Actuator Data

  • Actuator Selection: Select actuator separately

Overview

UPC 66207255420
GTiN 00662072554203
Size 32 A
Type 2-Position, Open, Off/On 90
Mounting Type Front/Door
Family Brand Name Allen Bradley
Enclosure Type Open
Actuator Select Actuator Separately
Number of Poles 6 Pole
Enclosure Open
Wire Size (1) 14-8 AWG, (2) 14-10 AWG Rigid Wire, (1) 14-8 AWG, (2) 14-10 AWG Fine Strands
Temperature Rating -25 to 60 C
Environmental Conditions -40 to 80 C Storage
Load Rating 15 kW at 690 VAC
Operating Cycles 200000
Standard CE,CSA,KC,UL
