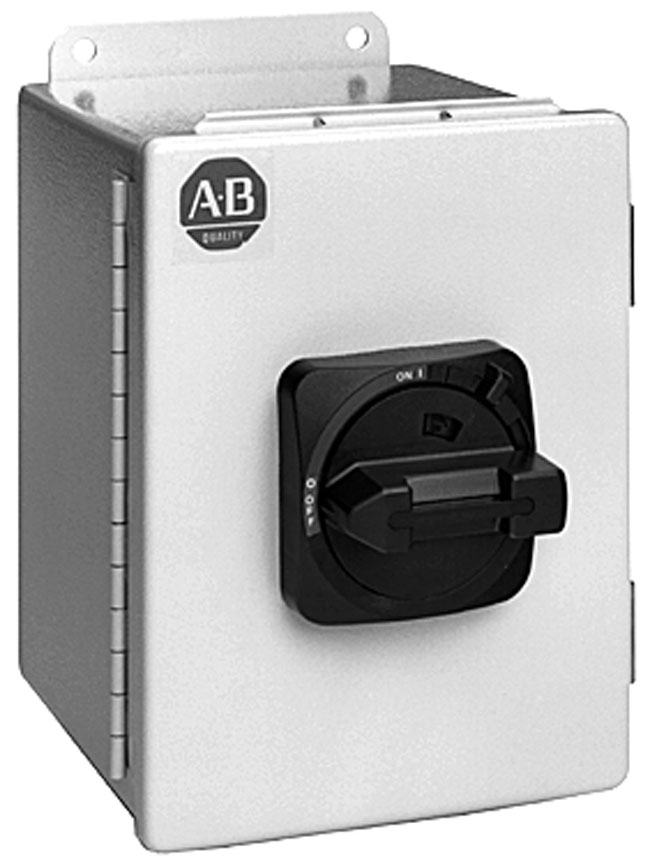

Allen-Bradley 194E-FA20E-P11 Load Switch
Product image thumbnail 0
Product image thumbnail 1
$385.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 194E-FA20E-P11
North Coast Part # 600240

Specifications

  • Mounting: Base / DIN Rail
  • Number Of Poles: 3 Poles
  • Type: OFF-ON 90°

Switch Data

  • Size: 25 A
  • Enclosure Type: NEMA Type 3/4/12 - IP66 Painted Steel (Rectangular)
  • Installation: Base / DIN Rail
  • Pole Configuration: 3 Poles
  • Enclosure Size: Standard Size Enclosure
  • Configuration: OFF-ON 90°

Actuator Data

  • Handle Color: Red / Yellow

Enclosed Switch Modifications

  • Left Side Modifications: Auxiliary Contact (1 N.O. 1 N.C.)
  • Right Side Modifications: No Modification

Overview

UPC 66207298858
GTiN 00662072988589
Mounting Type Base
Family Brand Name Allen Bradley
NEMA 12,3,4
IP Rating IP66
Number of Poles 3 Pole
Finish Painted
Color Red/Yellow Handle
Type Enclosed
Wire Size (1) 14-8 AWG, (2) 14-10 AWG Rigid Wire, (1) 14-8 AWG, (2) 14-10 AWG Fine Strands
Temperature Rating -25 to 60 C
Housing Material Steel
Contact Configuration 1 NO, 1 NC Auxiliary
Blade Dimensions 4.0625 in W x 7.3593 in D x 7.5 in H
Environmental Conditions -40 to 80 C Storage
Load Rating 11 kW at 690 VAC
Operating Cycles 200000
