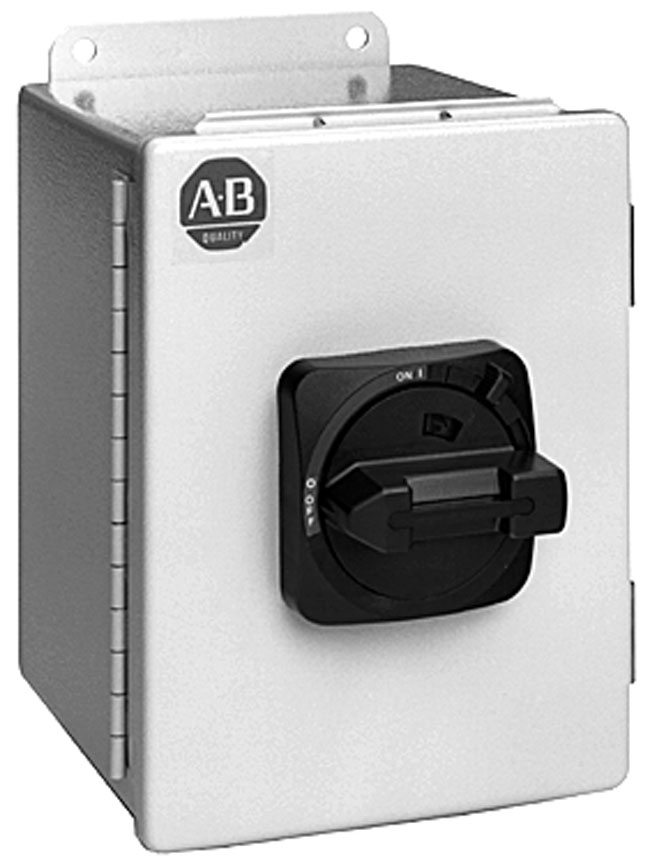

Allen-Bradley 194E-FA80E-P11 194E Load switch
$587.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 194E-FA80E-P11
North Coast Part # 674464

Specifications

Switch Data

  • Size: 80 A
  • Enclosure Type: NEMA Type 3/4/12 - IP66 Painted Steel (Rectangular)
  • Installation: Base / DIN Rail
  • Pole Configuration: 3 Poles
  • Enclosure Size: Standard Size Enclosure
  • Configuration: OFF-ON 90°

Actuator Data

  • Handle Color: Red / Yellow

Enclosed Switch Modifications

  • Left Side Modifications: Auxiliary Contact (1 N.O. 1 N.C.)
  • Right Side Modifications: No Modification

Categories

Overview

UPC 66207298914
GTiN 00662072989142
Family Brand Name Allen Bradley
NEMA 12,3,4
IP Rating IP66
Number of Poles 3 Pole
Finish Painted
Color Red/Yellow Handle
Type Enclosed
Mounting Type Base
Wire Size (1) 10-1 AWG, (2) 10-4 AWG Rigid Wire, (1) 10-1 AWG, (2) 10-6 AWG Fine Strands
Temperature Rating -25 to 60 C
Housing Material Steel
Contact Configuration 1 NO, 1 NC Auxiliary
Blade Dimensions 6.9375 in W x 7.875 in D x 9.5 in H
Environmental Conditions -40 to 80 C Storage
Load Rating 37 kW at 690 VAC
Operating Cycles 200000
