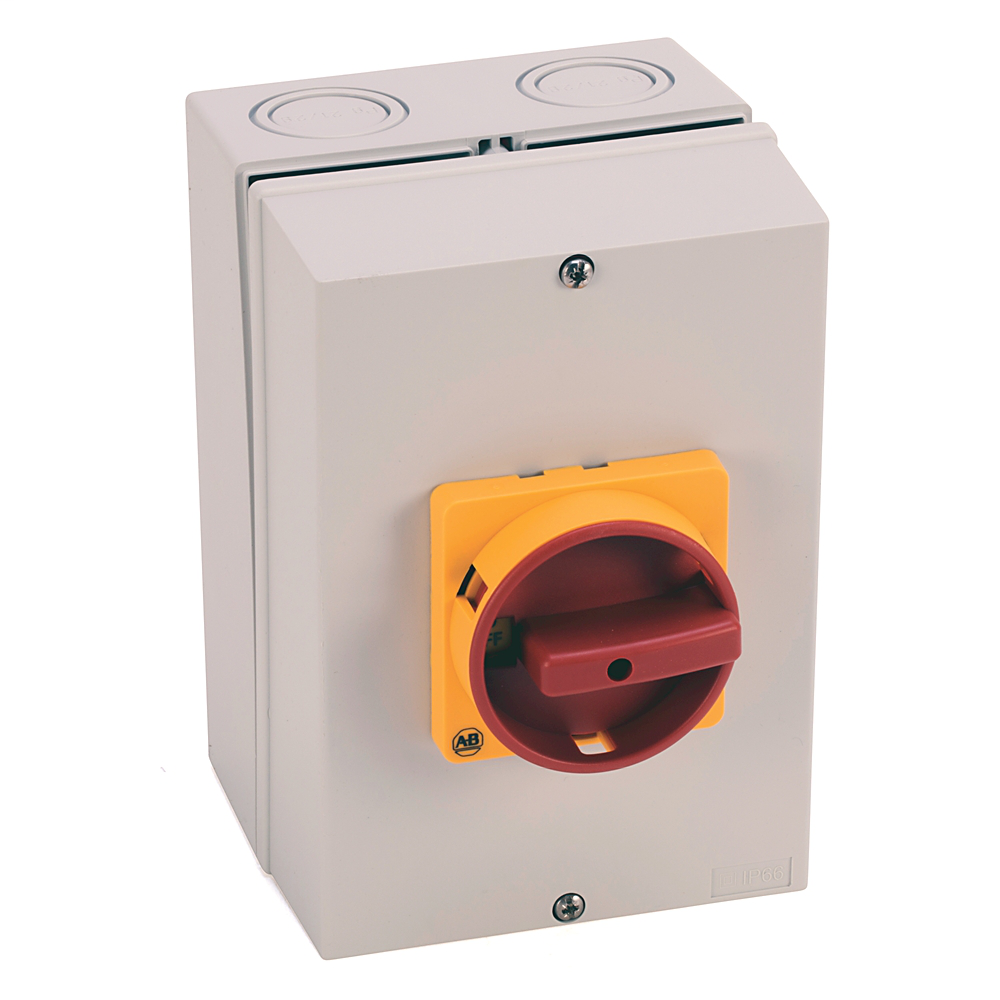

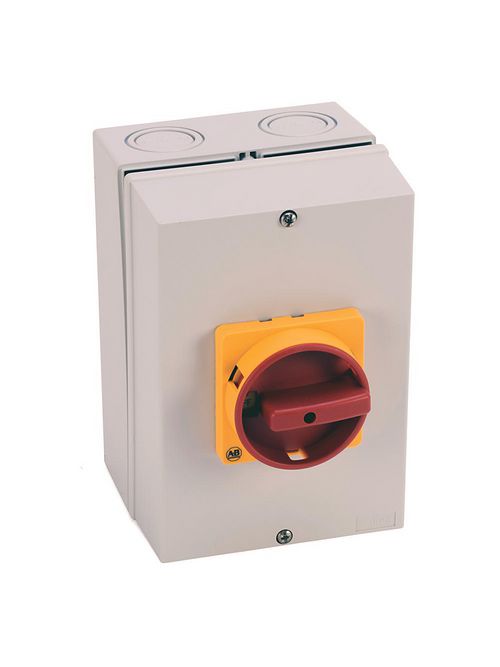

Allen-Bradley 194E-Y25-1753-6N Load Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$164.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 194E-Y25-1753-6N
North Coast Part # 11584

Features

  • Suitable as At-Motor Disconnect Switch (UL508)
  • Padlockable Handles Available (up to 3 padlocks)
  • 3- and 6-Pole Enclosed Switches
  • Positive-Guided Actuation
  • Optional Thermoplastic Enclosures
  • Front/Door or DIN/Base Mounting Configurations
  • IP2LX Finger-Safe Terminals
  • IP66/ UL Type 1/3/3R/12 Operating Handles

Specifications

  • Mounting: Base / DIN Rail
  • Number Of Poles: 3 Poles
  • Type: OFF-ON 90°
  • Actuator: Supplied with a Type N Red/Yellow Actuator

Switch Data

  • Size: 25 A
  • Enclosure Type: IP65 (Thermoplastic)
  • Installation: Base / DIN Rail
  • Pole Configuration: 3 Poles
  • Configuration: OFF-ON 90°
  • Knockouts: PG Type Cable Gland Entry

Actuator Data

  • Actuator Selection: Supplied with a Type N Red/Yellow Actuator

Categories

Overview

UPC 66246886336
Item Long Description 25 A 194E Load switch
GTiN 00662468863360
Size 25 A
Type Variable Position Knob, 1-Switch
Mounting Type Front
Connection Type Screw
Family Brand Name Allen Bradley
Actuator Supplied With A Type N Red/Yellow Actuator
IP Rating IP65
Number of Poles 3 Pole
Load Rating 7.5 kW at 400 VAC-3
Enclosure IP65 (Thermoplastic)
Voltage 0-690 Volt
Standard CCC,CE,CSA,KC
