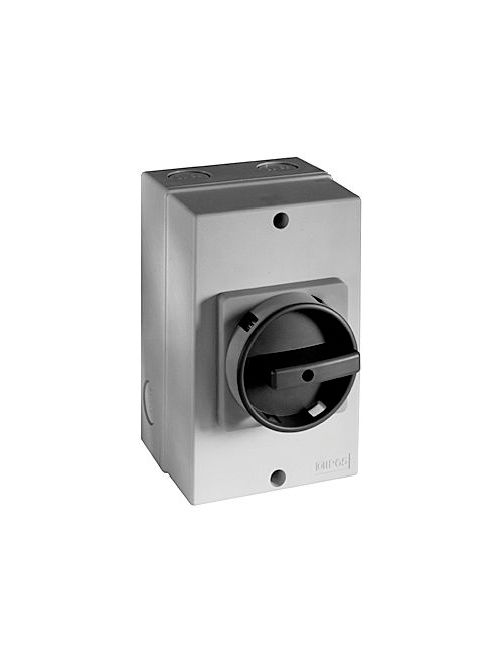

Allen-Bradley 194E-Y40-1753-6N Load Switch
Product image thumbnail 0
Product image thumbnail 1
$215.16/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 194E-Y40-1753-6N
North Coast Part # 605618

Features

  • Suitable as At-Motor Disconnect Switch (UL508)
  • Positive-Guided Actuation
  • Optional Thermoplastic Enclosures
  • IP2LX Finger-Safe Terminals
  • Front/Door or DIN/Base Mounting Configurations
  • Padlockable Handles Available (up to 3 padlocks)
  • 3- and 6-Pole Enclosed Switches
  • IP66/ UL Type 1/3/3R/12 Operating Handles

Specifications

  • Mounting: Base / DIN Rail
  • Number Of Poles: 3 Poles
  • Type: OFF-ON 90°
  • Actuator: Supplied with a Type N Red/Yellow Actuator

Switch Data

  • Size: 40 A
  • Enclosure Type: IP65 (Thermoplastic)
  • Installation: Base / DIN Rail
  • Pole Configuration: 3 Poles
  • Configuration: OFF-ON 90°
  • Knockouts: PG Type Cable Gland Entry

Actuator Data

  • Actuator Selection: Supplied with a Type N Red/Yellow Actuator

Overview

UPC 66246886338
GTiN 00662468863384
Size 40 A
Type On/Off, 2-Position, Enclosed
Mounting Type Base
Family Brand Name Allen Bradley
Actuator Supplied With A Type N Red/Yellow Actuator
IP Rating IP65
Number of Poles 3 Pole
Enclosure IP65 (Thermoplastic)
Wire Size (1) 12-4 AWG, (2) 12-8 AWG Rigid Wire, (1) 12-4 AWG, (2) 12-8 AWG Fine Strands
Temperature Rating -25 to 60 C Operating
Housing Material ABS Thermoplastic
Blade Dimensions 125 mm W x 105 mm D x 180 mm H
Environmental Conditions -40 to 80 C Storage
Load Rating 18.5 kW at 690 VAC
Standard CCC,CE,CSA,KC
