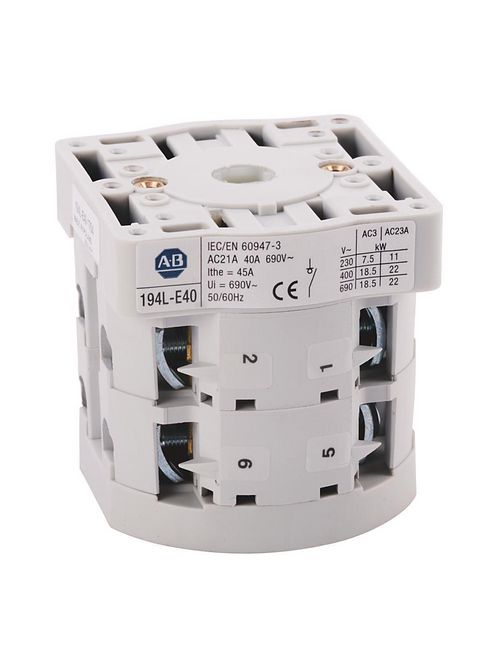

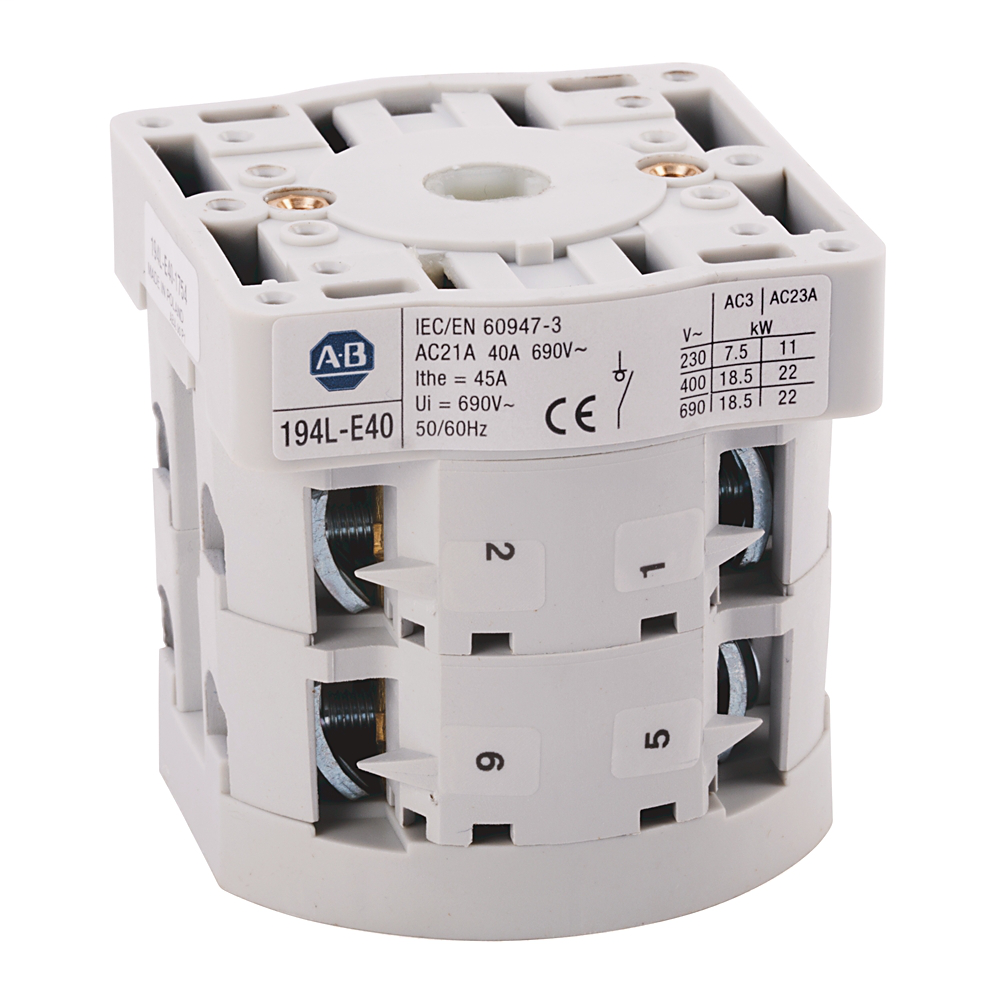

A-B 194L-E40-1754 40 A 194L Load Sw
Product image thumbnail 0
Product image thumbnail 1
$118.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 194L-E40-1754
North Coast Part # 211041

Features

  • Thermoplastic enclosures IP66
  • IP66 water spray and dustproof handles
  • IP20 finger-safe terminals

Specifications

  • Number Of Poles: 4 Poles
  • Actuator: Select actuator separately

Switch Data

  • Enclosure Type: Open
  • Configuration: OFF-ON 90°
  • Size: 40 A
  • No. of Poles: 4 Poles
  • Installation: Front / Door

Actuator

  • Actuator Selection: Select actuator separately

Overview

UPC 61132092308
GTiN 00611320923087
Size 40 A
Type On/Off
Family Brand Name Allen Bradley
Enclosure Type Open
Actuator Select Actuator Separately
Contact Configuration OFF-ON 90
Number of Poles 4 Pole
Enclosure Open
Mounting Type Front/Door
Wire Size 12-8 AWG (Rigid)/14-10 AWG (Fine)
Temperature Rating -25 to 60 C
Housing Material Thermoplastic
Blade Dimensions 55 mm W x 40 mm D x 55 mm H
Environmental Conditions -40 to 80 C Storage Temperature
