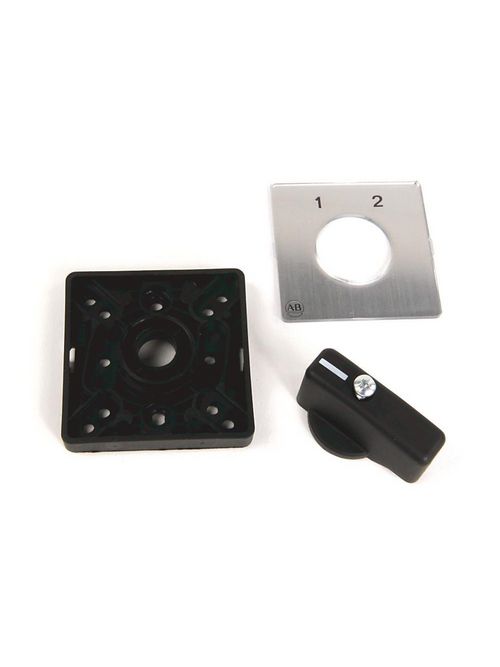

Allen-Bradley 194L-HE4A-250 Type A Gray/Black 48 mm x 48 mm Legend Text: 1-2 (60) IEC Control and Load Switch Actuator
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 194L-HE4A-250
North Coast Part # 599919


  • Degree of Protection: IP66 (UL Type 3/3R/12)

Switch Data

  • Bulletin: 194L Load Switch
  • Configuration: Changeover 1-2 60°
  • Installation: Front / Door

Actuator Data

  • Installation: Screw Mounting
  • Style: Gray/Black
  • Size: Size 4 (48mm x 48mm)
  • Actuator Legend Marking: 1 - 2 (60 degrees)


UPC 66246821891
GTiN 00662468218917
Size 48 mm
Color Gray/Black
Type Square, Screw Mount, Type A
Applications 194L-A12-A25/E12-E25/C32-C40
Style Gray/Black
Family Brand Name Allen Bradley
Sub Brand 194L
Blade Dimensions 48 mm x 48 mm Legend Handle Plate
Used With 194L?E1240 A, ?7543, 194L?A1240 A, ?7543 IEC Control and Load Switches
Mounting Type Screw Mounting
Standard KC
