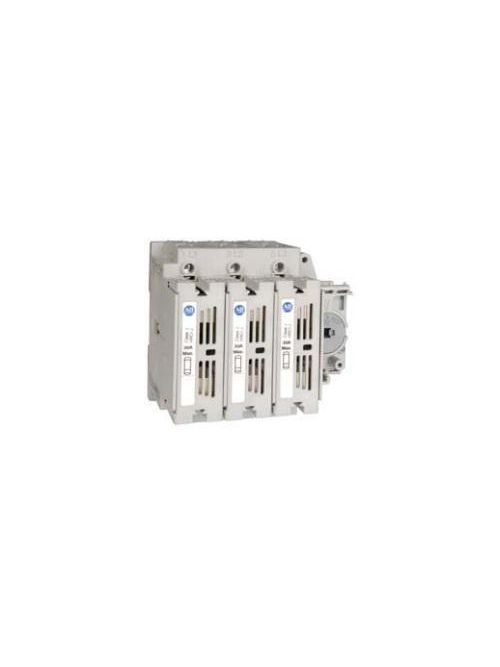

Allen Bradley 194R-B100-1753 100 Amp BS Type Fused Disconnect Switch
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 194R-B100-1753
North Coast Part # 1094011


  • Includes OSHA padlocking
  • Provides touch-safe design


Switch Data

  • Fuse Type: BS88
  • Switch Ampere Rating: 100A
  • Pole Configuration: 3 Pole
  • Open, Kitted, or Enclosed?: Open


UPC 78118065120
GTiN 00781180651205
Family Brand Name Allen Bradley
Number of Poles 3 Pole
Type Fused, Open, Rotary
Applications For Food Processing, Electrical Machinery, Material Handling Operations
Mounting Type DIN Rail/Panel
Wire Size 14-12 AWG
Fuse Type BS88, Size A4
Temperature Rating -20 to 60 C
Blade Dimensions 5.2 in D x 6.38 in H
Environmental Conditions -40 to 65 C Storage, 90% at 20 C, 50% at 40 C Relative Humidity, 2000 m Altitude
Load Rating 57 kW at 380/400/415 V, 90 kW at 660/690 V
Operating Cycles 10000
