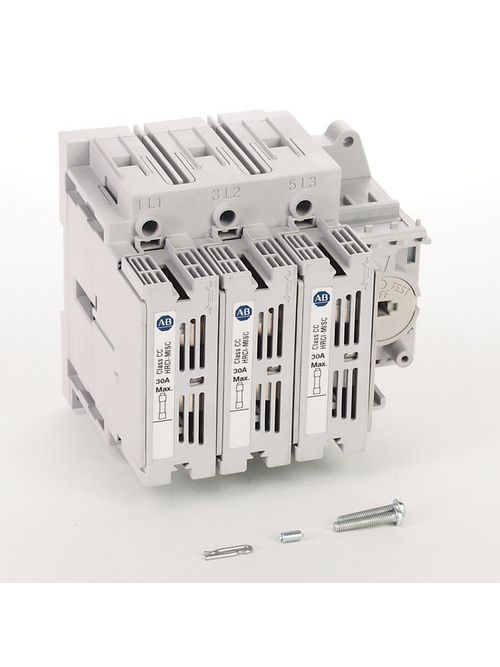

Allen Bradley 194R-C30-1753S-PYN1 Fused Disconnect Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 194R-C30-1753S-PYN1
North Coast Part # 761284


Switch Data

  • Fuse Type: UL Class CC, CSA Type HRCI-MISC
  • Switch Ampere Rating: 30A
  • Pole Configuration: 3 Pole
  • Open, Kitted, or Enclosed?: Kitted
  • Do you want Fuse Status Indication?: Yes, please add Fuse Status Indication

Handle Data

  • External Handle: Standard Red/Yellow Handle 3/3R/4/4X/12

Factory Modified Options

  • Shaft Options: NFPA79 Handle with S1 Shaft (12") and Guard Tube


UPC 88563016310
Item Long Description 194R Disconnect Switch
GTiN 00885630163109
Type Fused, Open
Family Brand Name Allen Bradley
Actuator Standard Pistol Red/Yellow Han
Number of Poles 3 Pole
Indicator Fuse Status Indication
Applications For Food Processing, Electrical Machinery, Material Handling Operations
Mounting Type DIN Rail/Panel
Wire Size 14-12 AWG
Fuse Type Class CC, HRCI-MISC
Temperature Rating -20 to 60 C
Blade Dimensions 6-3/4 in W x 5-13/16 in D x 9-3/4 in H
Environmental Conditions -40 to 65 C Storage, 90% at 20 C, 50% at 40 C Relative Humidity, 2000 m Altitude
Load Rating 5 hp at 250 VDC, 3 hp at 125 VDC, 20 hp at 600 VDC, 15 hp at 480 VDC, 7.5 hp at 240 VDC, 3 hp at 240 VAC, 2 hp at 120 VAC
Operating Cycles 10000
Amperage 30 Amp
