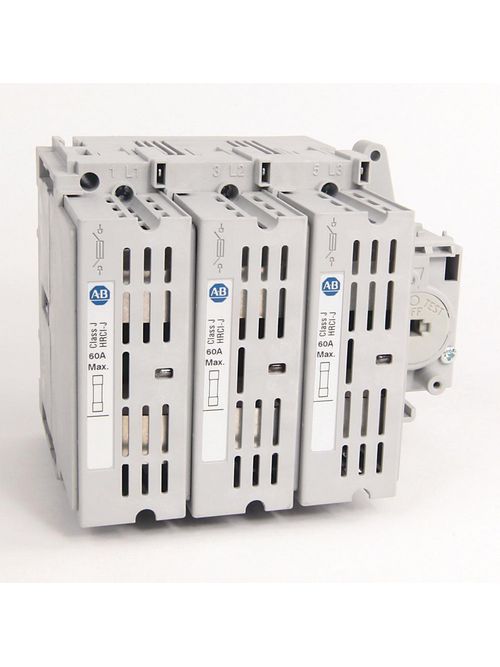

A-B 194R-J60-1753S-PYN2 194R Discon
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$617.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 194R-J60-1753S-PYN2
North Coast Part # 934380

Specifications

Switch Data

  • Fuse Type: UL Class J/CSA HRCI-J
  • Switch Ampere Rating: 60A
  • Pole Configuration: 3 Pole
  • Open, Kitted, or Enclosed?: Kitted
  • Do you want Fuse Status Indication?: Yes, please add Fuse Status Indication

Handle Data

  • External Handle: Standard Red/Yellow Handle 3/3R/4/4X/12

Factory Modified Options

  • Shaft Options: NFPA79 Handle with S2 Shaft (21") and Guard Tube

Categories

Overview

UPC 88563021470
Item Long Description 194R Disconnect Switch
GTiN 00885630214702
Type Fused, Open, Rotary
Family Brand Name Allen Bradley
Actuator Standard Pistol Red/Yellow Han
Number of Poles 3 Pole
Indicator Fuse Status Indication
Applications For Food Processing, Electrical Machinery, Material Handling Operations
Mounting Type DIN Rail/Panel
Wire Size 14-12 AWG
Fuse Type Class J, HRCI-J
Temperature Rating -20 to 60 C
Blade Dimensions 7-3/4 in W x 5-13/16 in D x 9-3/4 in H
Environmental Conditions -40 to 65 C Storage, 90% at 20 C, 50% at 40 C Relative Humidity, 2000 m Altitude
Load Rating 10 hp at 250 VDC, 5 hp at 125 VDC, 50 hp at 600 VDC, 30 hp at 480 VDC, 15 hp at 240 VDC, 10 hp at 240 VAC, 3 hp at 120 VAC
Operating Cycles 10000
Standard KC
Amperage 60 Amp
