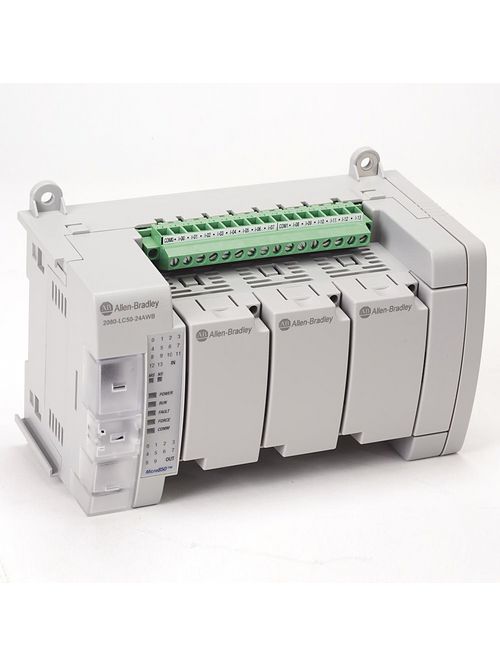

Allen-Bradley 2080-LC50-24AWB Micro850 24 I/O
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SCB
Mfg Catalog # 2080-LC50-24AWB
North Coast Part # 817814


  • Supports microSD™ card for program transfer, datalog, and recipe management through plug-in module
  • Includes 100 kHz speed high-speed counter (HSC) inputs on 24V DC models
  • Supports up to four Micro850® Expansion I/O Modules, up to 132 I/O points
  • Provides embedded communications via USB programming port, non-isolated serial port (for RS-232 and RS-485 communications) and Ethernet port
  • Operates in -20…65 °C (-4…149 °F) temperatures
  • Communicates via EtherNet/IP™
  • Provides embedded motion capabilities by supporting as many as three axes with Pulse Train Outputs (PTO)
  • Supports up to five Micro800™ Plug-in Modules
  • Offers 24-point and 48-point controllers


M850 Product Configuration

  • Micro 850: M850 System with Base unit and Plug-in options
  • Digital Input Type: 120V AC
  • Number of Input Points available: 14
  • Digital Output type: Relay
  • Number of Output Points Available: 10

Motion Support Options

  • Note: Available in Base unit for 24V DC/V AC Input Type, however the High Speed Counter Support option is available as Plug-in module


  • Network Media: Male RJ45 to Male RJ45, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m


  • 1585J-M8TBJM-1M9


UPC 88495171171
Item Long Description Micro850 24 I/O EtherNet/IP Controller
GTiN 00884951711716
Width 150 mm
Operating Temperature 149 degrees F
Type Controller
Depth 80 mm
Height 90 mm
Family Brand Name Allen Bradley
Number of Channels 14 I/P, 10 O/P
Power Supply 24 VDC
Memory 140 KB
Output Signal Relay
Enclosure IP20
Sub Brand Micro800
Mounting Type DIN Rail, Panel Mount
Display Type No Display
