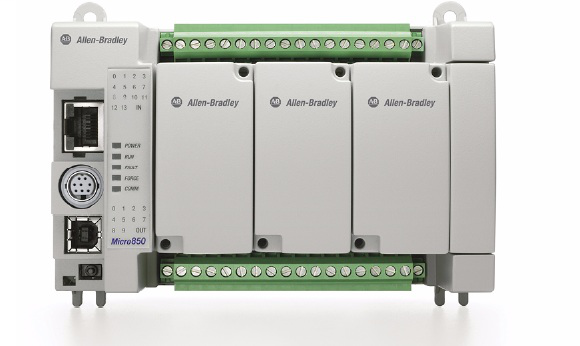

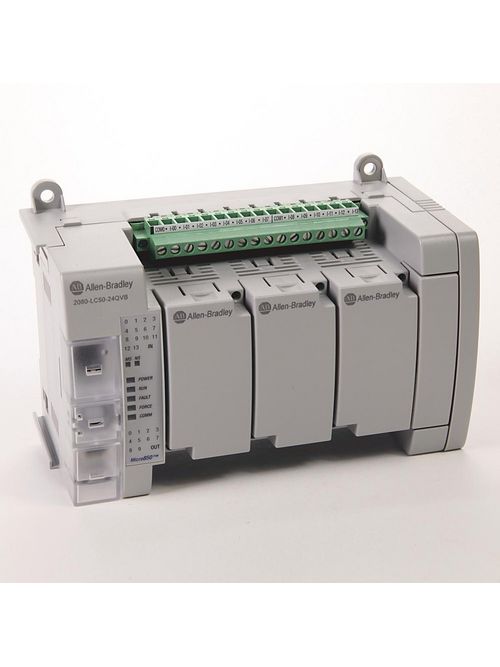

Allen Bradley 2080-LC50-24QVB Micro850 24 I/O Ethernet/IP Programmable Logic Controller
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$515.16/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SCB
Mfg Catalog # 2080-LC50-24QVB
North Coast Part # 827810

Features

  • Supports up to five Micro800™ Plug-in Modules
  • Communicates via EtherNet/IP™
  • Supports microSD™ card for program transfer, datalog, and recipe management through plug-in module
  • Supports up to four Micro850® Expansion I/O Modules, up to 132 I/O points
  • Provides embedded communications via USB programming port, non-isolated serial port (for RS-232 and RS-485 communications) and Ethernet port
  • Operates in -20…65 °C (-4…149 °F) temperatures
  • Includes 100 kHz speed high-speed counter (HSC) inputs on 24V DC models
  • Provides embedded motion capabilities by supporting as many as three axes with Pulse Train Outputs (PTO)
  • Offers 24-point and 48-point controllers

Specifications

M850 Product Configuration

  • Micro 850: M850 System with Base unit and Plug-in options
  • Digital Input Type: 24V DC/V AC
  • Number of Input Points available: 14
  • Digital Output type: 24V DC Sink
  • Number of Output Points Available: 10

Motion Support Options

  • Note: Available in Base unit for 24V DC/V AC Input Type, however the High Speed Counter Support option is available as Plug-in module

Motion Support Options Available Based On Selected Io Options

  • High Speed Counter Support: 4
  • Pulse Train Output Support: 2

Accessories

  • Network Media: Male RJ45 to Male RJ45, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m

Accessories

  • 1585J-M8TBJM-1M9

Overview

GTiN 00884951711693
Width 150 mm
Operating Temperature 149 degrees F
Type Controller
Depth 80 mm
Height 90 mm
Family Brand Name Allen Bradley
Number of Channels 14 Input, 10 Output
Power Supply 24 VDC
Memory 140 KB
Output Signal 24V DC Sink
Enclosure IP20
Sub Brand Micro800
Product UPC 88495171169
Mounting Type DIN Rail, Panel
Temperature Rating -20 to 65 C
Blade Dimensions 5.9055 in W x 80 mm D x 3.543 in H
Standard C-TICK,CCC,CE,CUL,KC,UL
Display Type No Display
