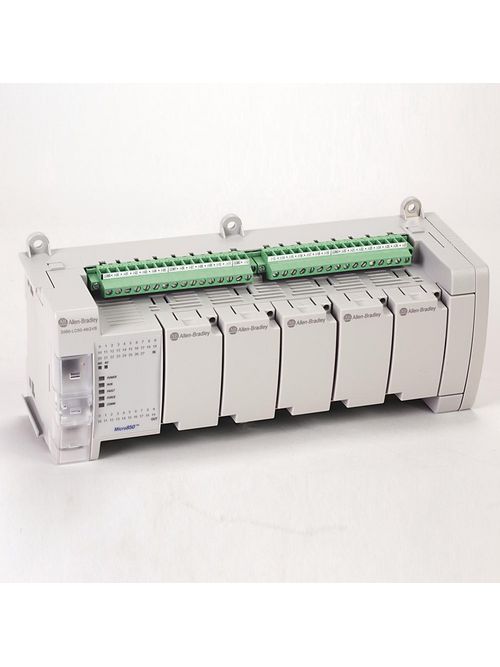

A-B 2080-LC50-48QVB Micro850 48 I/O
Product image thumbnail 0
Product image thumbnail 1
$754.72/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SCB
Mfg Catalog # 2080-LC50-48QVB
North Coast Part # 827811

Features

  • Supports microSD™ card for program transfer, datalog, and recipe management through plug-in module
  • Operates in -20…65 °C (-4…149 °F) temperatures
  • Includes 100 kHz speed high-speed counter (HSC) inputs on 24V DC models
  • Supports up to five Micro800™ Plug-in Modules
  • Provides embedded communications via USB programming port, non-isolated serial port (for RS-232 and RS-485 communications) and Ethernet port
  • Offers 24-point and 48-point controllers
  • Provides embedded motion capabilities by supporting as many as three axes with Pulse Train Outputs (PTO)
  • Communicates via EtherNet/IP™
  • Supports up to four Micro850® Expansion I/O Modules, up to 132 I/O points

Specifications

M850 Product Configuration

  • Micro 850: M850 System with Base unit and Plug-in options
  • Digital Input Type: 24V DC/V AC
  • Number of Input Points available: 28
  • Digital Output type: 24V DC Sink
  • Number of Output Points Available: 20

Motion Support Options

  • Note: Available in Base unit for 24V DC/V AC Input Type, however the High Speed Counter Support option is available as Plug-in module

Motion Support Options Available Based On Selected Io Options

  • High Speed Counter Support: 6
  • Pulse Train Output Support: 3

Accessories

  • Network Media: Male RJ45 to Male RJ45, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m

Accessories

  • 1585J-M8TBJM-1M9

Overview

UPC 88495171175
GTiN 00884951711754
Width 230 mm
Operating Temperature 149 degrees F
Type Controller
Depth 80 mm
Height 90 mm
Family Brand Name Allen Bradley
Number of Channels 28 Input, 20 Output
Power Supply 24 VDC
Memory 20 KB
Output Signal 24V DC Sink
Enclosure IP20
Sub Brand Micro800
Mounting Type DIN Rail, Panel
Temperature Rating -20 to 65 C
Blade Dimensions 230 mm W x 80 mm D x 90 mm H
Standard C-TICK,CCC,CE,CUL,KC,UL
Display Type No Display
