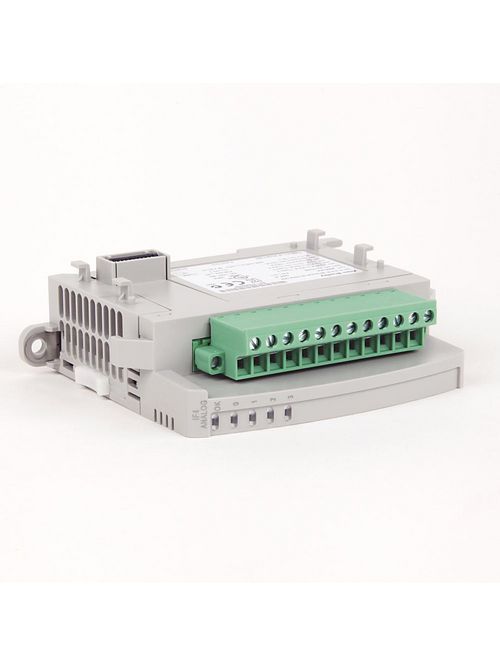

A-B 2085-IF4 Micro800 4 Point Analo

Features

• Analog input and output modules available: 4-channel, 8-channel, isolated
• Variety of DC and AC discrete modules available to suit different applications
• Thermocouple (TC) modules available: 4-channel, isolated
• High-density discrete I/O module available to reduce space consumption
• High accuracy
• Resistance temperature detector (RTD) available (4-channel, isolated)
• Solid-state output modules available for applications that require more than relays
• End cap terminator
• Offers removable terminal blocks for ease of installation, maintenance and wiring
• High resolution
• Provides additional analog I/O, digital I/O and specialty capabilities

Specifications

• Sub Brand: Micro800
• Type: Analog, Input
• Standard: c-UL-us CL1DIV2, CE, C-Tick, KC
• Height: 90mm
• Width: 28mm
• Depth: 87mm
• Enclosure: IP20
• Temperature Rating: -20...65 °C (-4...149 °F)
• Input: 4 Point, ±10V, 0-20mA
• I/O Isolation: Isolated
• I/O Status Indication: LED
• Mounting: DIN Rail, Panel Mount

Micro850 Expansion I/O Modules

• Expansion I/O Modules: Micro850 Input Module, Analog, Voltage/Current, 4 Channels, Bipolar, +-10V, 0-20mA
