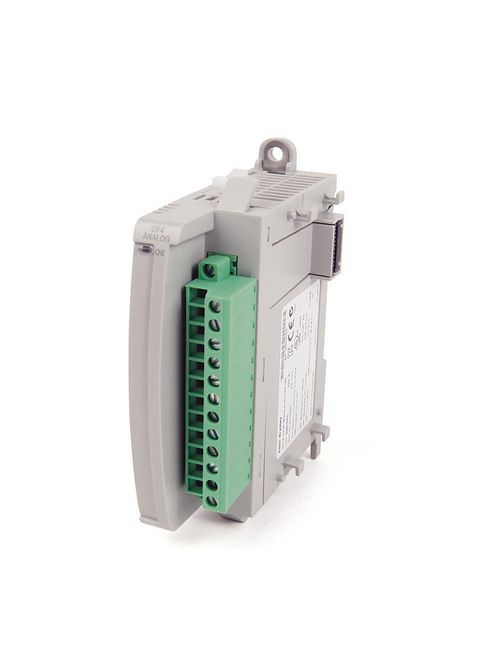

Allen Bradley 2085-OF4 4-Point Analog Output Module
Product image thumbnail 0
Product image thumbnail 1
$258.64/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SCB
Mfg Catalog # 2085-OF4
North Coast Part # 823400

Features

  • End cap terminator
  • Provides additional analog I/O, digital I/O and specialty capabilities
  • High resolution
  • High accuracy
  • Analog input and output modules available: 4-channel, 8-channel, isolated
  • Offers removable terminal blocks for ease of installation, maintenance and wiring
  • Variety of DC and AC discrete modules available to suit different applications
  • Thermocouple (TC) modules available: 4-channel, isolated
  • Resistance temperature detector (RTD) available (4-channel, isolated)
  • Solid-state output modules available for applications that require more than relays
  • High-density discrete I/O module available to reduce space consumption

Specifications

  • Sub Brand: Micro800
  • Type: Analog, Output
  • Standard: c-UL-us CL1DIV2, CE, C-Tick, KC
  • Height: 90mm
  • Width: 28mm
  • Depth: 87mm
  • Enclosure: IP20
  • Temperature Rating: -20...65 °C (-4...149 °F)
  • I/O Isolation: Isolated
  • I/O Status Indication: LED
  • Mounting: DIN Rail, Panel Mount
  • Output: 4 Point, +-10V, 0-20mA

Micro850 Expansion I/O Modules

  • Expansion I/O Modules: Micro850 Output Module, Analog, Voltage/Current, 4 Channels, Bipolar, +-10V, 0-20mA

Overview

UPC 88563008239
GTiN 00885630082394
Width 28 mm
Type Analog, Output
Mounting Type DIN Rail, Panel Mount
Depth 87 mm
Height 90 mm
Standard C-Tick,C-UL-us CL1DIV2,CE,KC
Temperature Rating 149 degrees F
Family Brand Name Allen Bradley
TC Connection Screw
Output 4 Point, +-10V, 0-20mA
Blade Dimensions 90 mm W x 87 mm D x 28 mm H
Enclosure IP20
Sub Brand Micro800
