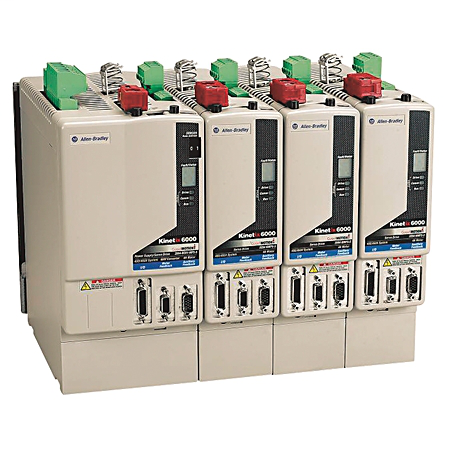

Allen-Bradley 2094-BC02-M02-S Kinetix 6000 Integrated Axis Module
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-KNX
Mfg Catalog # 2094-BC02-M02-S
North Coast Part # 18342


  • Safe Torque-off is certified at ISO 13849-1 PLe/SIL3, and requires an external safety relay to meet EN954-1, Category 3. Prevents drive restarts after the safety circuit is tripped.
  • Includes six inputs: 2 registration inputs, 1 home input, 2 over-travel inputs and 1 axis enable input
  • Built-in support for multi-turn absolute encoders to maintain position during power loss
  • Reduces the total number of connections through simplified wiring and modular design
  • Advanced control capabilities for greater precision and throughput
  • Peak Enhancement configuration supports motion applications that require fast acceleration and deceleration for limited duration
  • Integrates seamlessly into the Logix platform for multi-axis integrated motion
  • Greater flexibility in your machine design through compact size


  • Sub Brand: Kinetix 6000
  • Type: servo drive
  • Wattage: 6.6kW
  • Voltage Rating: 460V AC

Integrated Axis Modules

  • Modules: Integrated Axis Module, 400/460V, 15 kW Converter 15A Inv., Safe Torque Off


UPC 82091959567
Item Long Description Kinetix 6000 Integrated Axis Module
GTiN 00820919595677
Voltage 460 Volt
Type Integrated Axis Module
Applications Industrial Areas, Supporting Protocol for Other Bus Systems
Wattage 6.6 kW
Input Voltage 400 - 460 V
Family Brand Name Allen Bradley
Output Current 15 A
Blade Dimensions 249 mm W x 125 mm D x 281 mm H
Used With Kinetix 6000 Servo Drives
Sub Brand Kinetix 6000
