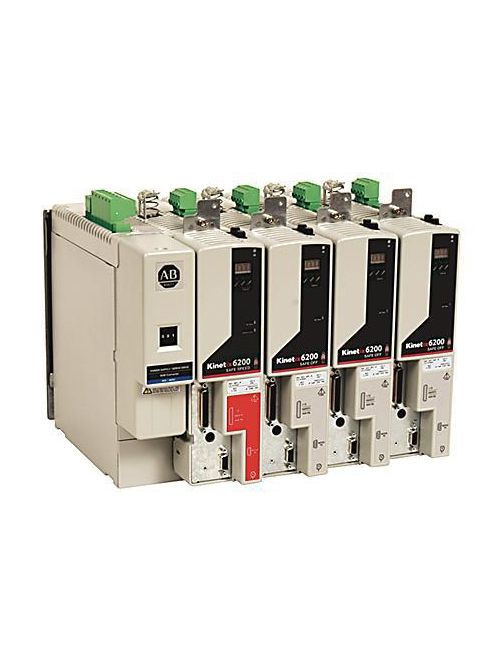

Allen-Bradley 2094-BC07-M05-M Kinetix 6200/6500 Integrated Module
Product image thumbnail 0
Product image thumbnail 1
$6,230.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-KNX
Mfg Catalog # 2094-BC07-M05-M
North Coast Part # 599705

Features

  • Safety features include Safe Stop, Zero Speed Monitoring, Safe Maximum Speed, Safe Direction Monitoring, Door Monitoring and Control, Enabling Switch Control and Safe Maximum Acceleration Monitoring
  • Dual-port embedded switch supports device-level ring (DLR) topology for EtherNet/IP™ applications
  • Safe Torque-Off is certified at ISO 13849-1 PLe/SIL3. No external relay required to meet EN954-1 Category 3. Prevents drive restarts after the safety circuit is tripped.
  • Modular design simplifies wiring, simplifies maintenance, reduces spare parts inventory, and helps you adapt quickly to technology enhancements
  • Safer access to guarded areas while operation continues under limited conditions
  • Reduces and monitors application speed so that an operator can safely inspect and perform limited work without completely stopping the machine
  • Connects to business, commercial and industrial devices with no need for proprietary hardware or software
  • Safety features include Safe Stop, Zero Speed Monitoring, Safe Direction Monitoring and Safe Maximum Acceleration Monitoring
  • Safe Speed Monitor combines the Safe Torque-Off capability and an embedded safety relay with the Rockwell Automation® Safe-Speed Control core technology in one hardware option embedded in the drive. Certified PLe/SIL3.
  • Standard Ethernet eliminates need for dedicated motion network
  • Integrates with the RSLogix™ 5000 programming software (version 20 or earlier), the Studio 5000™ Automation Engineering and Design environment (version 21 and later), and select ControlLogix™ controllers
  • Safe Torque-Off is certified at ISO 13849-1 PLe/SIL3. No external relay is required to meet EN954-1 Category 3. Prevents drive restarts after the safety circuit is tripped.
  • Safer access to guarded areas while a machine or process continues operation under limited conditions
  • Interchangeable control modules allow axes to transition to different networks or safety functionality

Specifications

  • Voltage Rating: 460V AC, 50/60Hz
  • Output: 45A (460V Input Voltage)

Product Selection

  • Bulletin Number: Bulletin 2094
  • Input Voltage: 460V AC, 50/60Hz
  • Power Module: Integrated Axis Module
  • Converter Power Rating: 45kW (460V input Voltage)
  • Inverter Current Rating: 45A (460V Input Voltage)

Additional Information

  • Wattage: 22 kW

Overview

UPC 88495114780
GTiN 00884951147805
Voltage 460 Volt
Type Integrated Axis Module
Applications Industrial Areas, Supporting Protocol for Other Bus Systems
Wattage 22 kW
Input Voltage 400 - 460 V
Family Brand Name Allen Bradley
Output 45A (460V Input Voltage)
Output Current 49 A
Used With Kinetix 6200 Servo Drives
Sub Brand Kinetix 6200/6500
Standard C-TICK,CCC,CE,CUL,KC,UL
