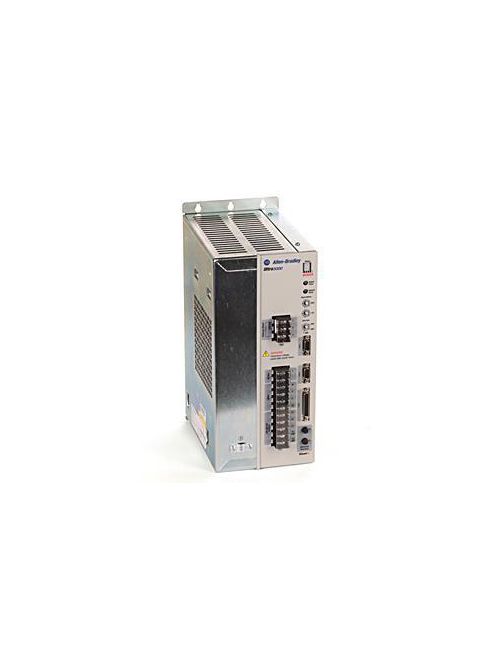

Allen-Bradley 2098-DSD-HV100-DN Ultra 3000 Se

Features

• One serial port for RS-232 or RS-485 communications
• The Ultra™ 3000 servo drive does not comply with the European Union (2011/65/EU) RoHS directive that restricts the use of hazardous substances and cannot be shipped to areas that require RoHS compliance.
• Eight selectable general purpose inputs
• Field-programmable flash memory firmware storage
• Built-in support for multi-turn absolute encoders or an option to supply external logic power to maintain position during power loss
• Four selectable general purpose outputs and relay output
• Uses standard high-density D-Shell connectors

Specifications

• Voltage Rating: High Voltage (230...480V ac)
• Wattage: 10 kW
• Control: DeviceNet Interface

Product Selection

• Bulletin Number: Bulletin 2098
• Drive Type: Ultra 3000 Digital Servo Drive
• Input Power: High Voltage (230...480V ac)
• Output Power: 10 kW
• Indexing: No Indexing
• Connections: DeviceNet Interface
