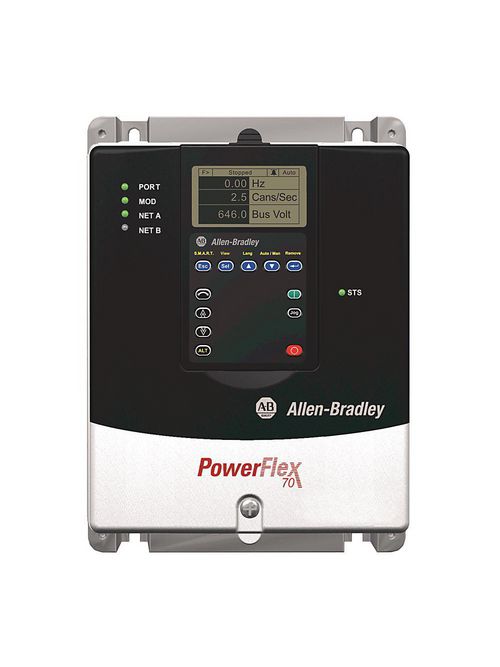

A-B 20AB6P8A0AYNNNC0 PowerFlex 70 A
Product image thumbnail 0
Product image thumbnail 1
$1,261.84/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SDB
Mfg Catalog # 20AB6P8A0AYNNNC0
North Coast Part # 669960

Features

  • Door-mounted human interface module (HIM), hand/off/auto selector switch, status pilot lights, and speed potentiometer
  • Supports multiple languages
  • Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
  • Safe Torque-Off option is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. All safety options are available as a kit for user installation
  • Advanced bus regulation and drive overload protection
  • Configuration and programming via integral LCD keypad, remote keypad, or software
  • Output relay and transformer control options
  • Common Industrial Protocol (CIP™) including DeviceNet™, ControlNet™, and EtherNet/IP™
  • V/Hz control, sensorless vector control, Vector Control with FORCE™ Technology
  • Wall or machine mount
  • Speed and torque control with and without encoder feedback
  • Power Ratings

Specifications

  • Voltage Rating: 240 (208) VAC, 3 PH

Base Drive Information

  • Input Voltage: 240 (208) VAC, 3 PH
  • Output Current: 6.8 Amps
  • Enclosure: Panel Mount - IP20 / NEMA Type 1, with conformal coating
  • Frame Size: Frame Size B
  • Brake IGBT: Brake IGBT
  • EMC Filtering Options: Without CE compliant filter

Options Information

  • Base Plus Options: Base Plus Options Method
  • Human Interface Module: No HIM (Blank)
  • Internal Communication Module: No Communication Module

Overview

UPC 82091920441
GTiN 00820919204418
Size B Frame
Voltage 240 Volt
Type 20A
Family Brand Name Allen Bradley
Output Current 6.8 A
Enclosure IP20/NEMA/UL 1
Sub Brand PowerFlex 70
Applications For Industrial use
Standard C-TICK,CE,CUL,GOST,KC,MARINE,UL
Display Type No HIM - Blank Plate
Enclosure Type IP20, NEMA/UL Type 1, Frame B
Power Rating 1.5 kW
Control Type Enhanced Control with 24 V I/O
Output 1 Analog
Blade Dimensions 171.7 mm W x 179.8 mm D x 234.6 mm H
