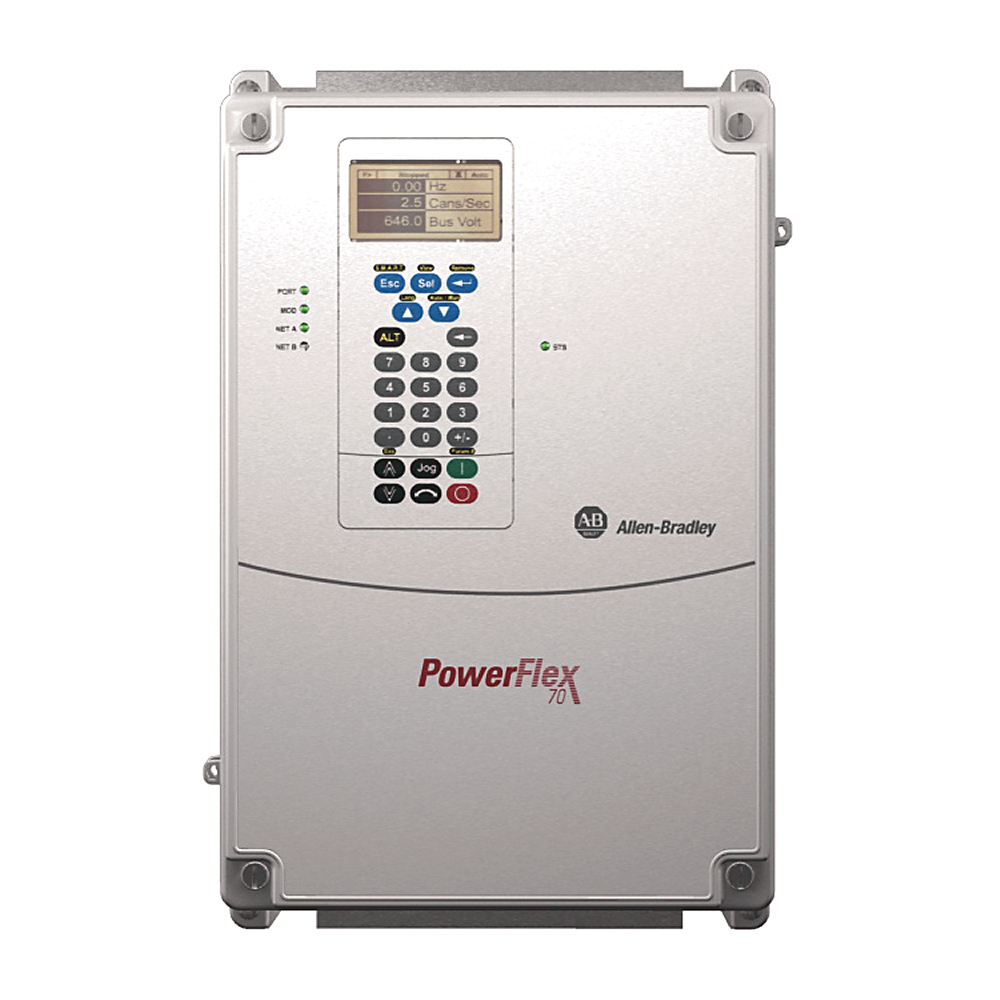

Allen-Bradley 20AD022C3AYNANC0 Powerflex 70 22 Amp at 15 Hp AC Drive
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4,887.75/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SDB
Mfg Catalog # 20AD022C3AYNANC0
North Coast Part # 600988

Features

  • Supports multiple languages
  • Advanced bus regulation and drive overload protection
  • Wall or machine mount
  • V/Hz control, sensorless vector control, Vector Control with FORCE™ Technology
  • Safe Torque-Off option is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. All safety options are available as a kit for user installation
  • Common Industrial Protocol (CIP™) including DeviceNet™, ControlNet™, and EtherNet/IP™
  • Speed and torque control with and without encoder feedback
  • Output relay and transformer control options
  • Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
  • Configuration and programming via integral LCD keypad, remote keypad, or software
  • Power Ratings
  • Door-mounted human interface module (HIM), hand/off/auto selector switch, status pilot lights, and speed potentiometer

Specifications

  • Voltage Rating: 480 VAC, 3 PH

Base Drive Information

  • Input Voltage: 480 VAC, 3 PH
  • Output Current: 22 Amps
  • Enclosure: Wall / Machine Mount - IP66/NEMA Type 4X/12 (Indoor Use), with conformal coating
  • Frame Size: Frame Size D
  • Brake IGBT: Brake IGBT
  • EMC Filtering Options: Second Environment Filter per CE EMC directive (89/336/EEC)

Options Information

  • Base Plus Options: Base Plus Options Method
  • Human Interface Module: LCD Display, Full Numeric Keypad
  • Internal Communication Module: No Communication Module

Overview

UPC 82091937901
Item Long Description PowerFlex 70 AC Drive 22 A at 15 Hp 20A
GTiN 00820919379017
Size D Frame
Voltage 480 Volt
Type 20A
Input Voltage 480 V
Family Brand Name Allen Bradley
Output Current 22 A
Enclosure IP66/NEMA/UL 4X/12 Wall
Sub Brand PowerFlex 70
Enclosure Type IP66, UL/NEMA 4X, 12, Frame D
Control Type Enhanced Control with 24 V I/O
Standard C-TICK,CE,CUL,GOST,KC,MARINE,UL
Display Type Numeric Keypad - LCD Display
