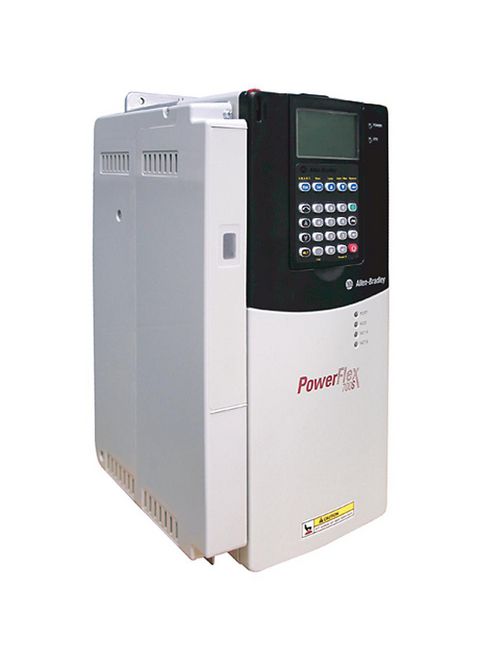

A-B 20DD052A0EYNANANE PowerFlex 700
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$13,531.09/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SDB
Mfg Catalog # 20DD052A0EYNANANE
North Coast Part # 1162397

Features

  • Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
  • Power Ratings
  • Configuration and programming via optional integral LCD keypad, remote keypad, or software
  • IP20 NEMA/UL Type 1 and IP21 NEMA/UL Type 1
  • AC or DC common bus configurations for stand-alone or multiple drive solutions
  • SynchLink™ fiber optic link for a high level of drive coordination and data transfer
  • Common bus capability
  • Zero Stacking™ Drives or side-by-side mounting conserves panel space and reduces installation costs
  • User function library provides logic functions without a PLC
  • Pull-apart control terminal blocks allow for easy wiring and quick disconnect
  • Optimized global voltage settings allow quick setup anywhere in the world
  • V/Hz control, Vector Control with FORCE™ Technology, and Permanent Magnet Motor Control

Specifications

  • Voltage Rating: 480 VAC, 3 PH

Base Drive Information

  • Input Voltage: 480 VAC, 3 PH
  • Output Current: 52 Amps
  • Enclosure: IP20 / Type 1, with conformal coating
  • Frame Size: Frame Size 3
  • Brake IGBT: Brake IGBT Installed
  • Brake Resistor: Without Drive Mounted Brake Resistor
  • EMC Filtering Options: Second Environment Filter per CE EMC directive (89/336/EEC)
  • Phase II, Control Options: Phase II control, Expanded cassette
  • Feedback Option: Standard (Incremental Encoder)
  • Additional Configurations: Phase II, No DriveLogix, no embedded comm
  • Firmware: Standard

Options

  • Base Plus Options: Base Plus Options Method
  • Internal Communication Module: No Communication Module

Overview

UPC 82091928401
Item Long Description 20D, 52 A 40 Hp, 480V AC Three-Phase, IP20/NEMA/UL 1, Ph II Ctrl - Expanded Cassette, Future Use, No HIM - Blank Plate, No Communication Module, W/ EMC Filt & ComModeChoke, Brake IGBT Installed, No Internal Brake Resistor, Size 3 Frame, Ph II Ctl, No DriveLogix, English Documentation
GTiN 00820919284014
Size Size 3 Frame
Voltage 480 Volt
Type 20D
Input Voltage 480 V
Family Brand Name Allen Bradley
Enclosure Type IP20, NEMA/UL Type 1, Frame 3
Control Type Phase II Control - Expanded Cassette
Output Current 52 A
Enclosure IP20/NEMA/UL 1
Sub Brand PowerFlex 700S
Standard KC
Display Type No HIM - Blank Plate
