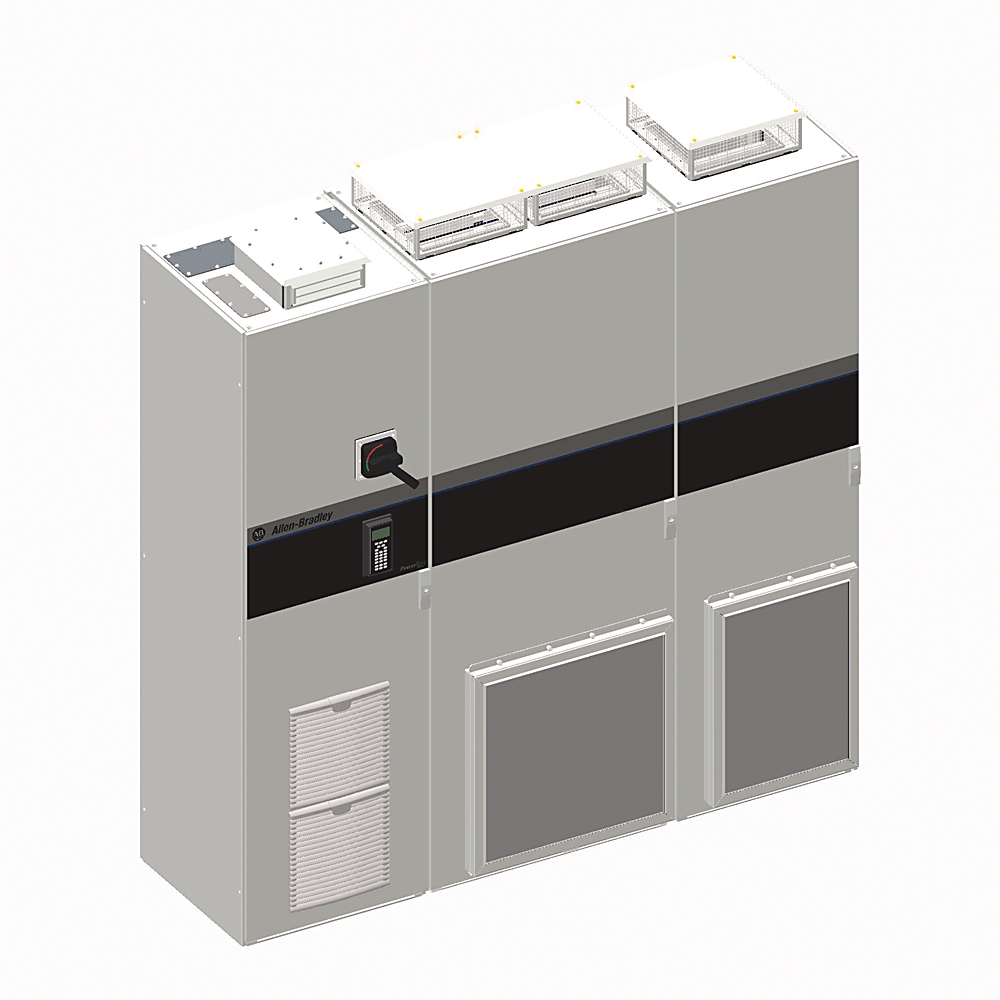

A-B 20G1G3D1K3LNDNNNNN PowerFlex 75
$220,637.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SDB
Mfg Catalog # 20G1G3D1K3LNDNNNNN
North Coast Part # 1611272

Specifications

Base Drive Information

  • Bulletin Number: PowerFlex 755T Drives
  • Voltage Class: 480 VAC, 3 PH
  • Current / Power Rating: LD - 1250HP (1520A), ND - 1100HP (1365A), HD - 900HP (1135A)
  • Enclosure Type: Type 1/IP21, Floor Mount
  • Input Type: Low Harmonic Drive (PowerFlex 755TL)
  • Frame Size: Frame 9
  • Protection & Filtering: Standard EMI Protection
  • Dynamic Braking: None
  • HIM & Control Type: Door Mounted HIM (20-750-C6S) & TotalFORCE Control

Power And Control Options

  • Torque Accuracy: No
  • Control Bay with Pod: No Control Bay
  • Control Transformer: No
  • Cable Entry: Bottom Cable Entry
  • Cable Exit: Bottom Cable Exit
  • System DC Bus Bars: No
  • DC Bus Conditioner: Standard Installation - Grounded
  • Back to Back Configuration: Inline

Overview

UPC 19132651807
GTiN 00191326518079
Size Frame 9C
Voltage 480 Volt
Type Air Cooled
Family Brand Name Allen Bradley
NEMA 1
IP Rating IP21
Enclosure TYPE 1/IP21, FLOOR MOUNT
Display Type IP54/TYPE 12 DOOR-MOUNTED HIM
Enclosure Type Frame 9C, IP21, NEMA 1
Sub Brand PowerFlex 755
