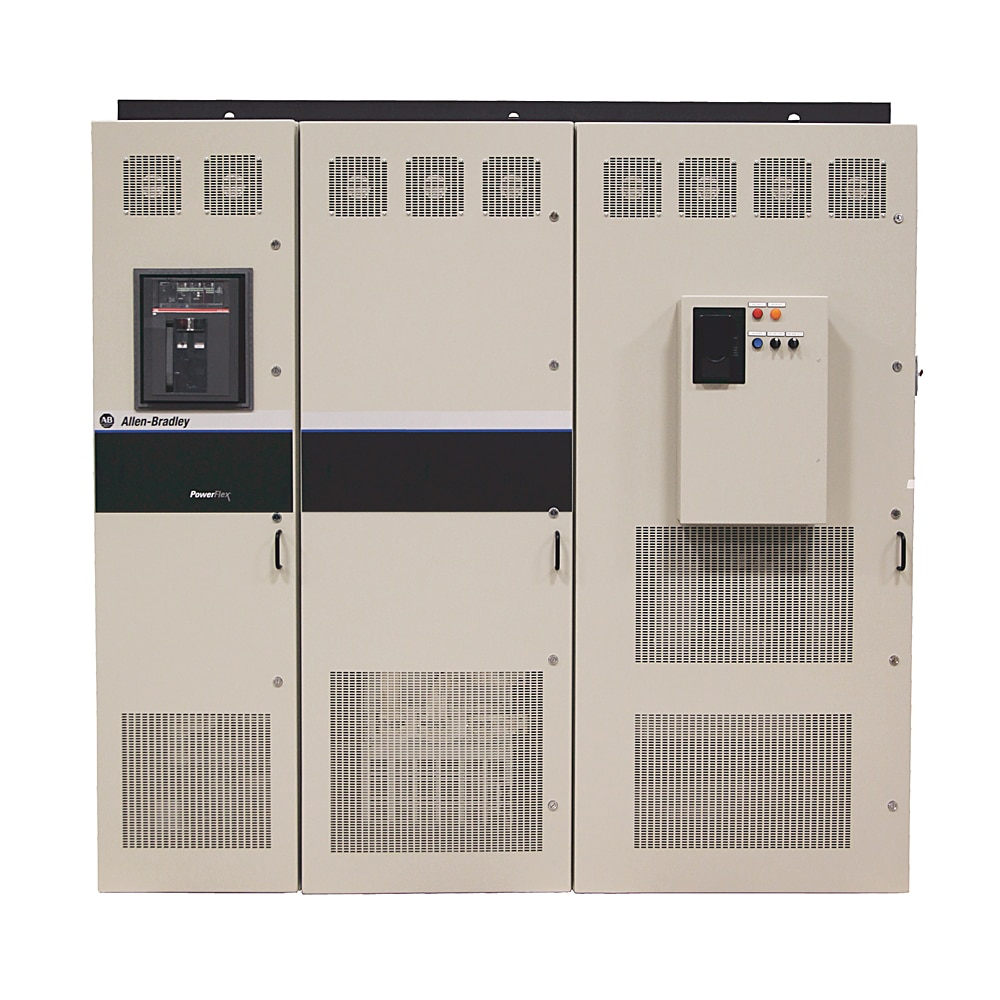

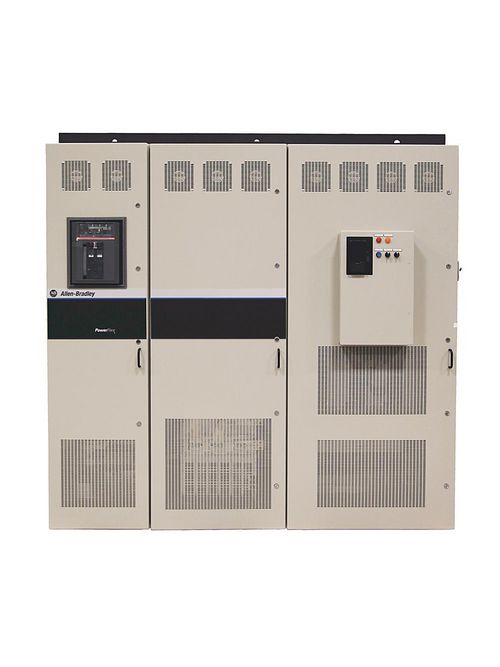

Allen-Bradley 20YD1K3A0ANNANA0 PowerFlex 700
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$215,860.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SDB
Mfg Catalog # 20YD1K3A0ANNANA0
North Coast Part # 1015287

Features

  • Configured with the Studio 5000™ Logix Designer application
  • Input voltage-boost operation provides full 480V AC to the motor, even when operating on 380V AC power lines
  • Power factor control regardless of motor speed and load
  • Low AC input harmonics
  • Regenerative braking for energy savings and elimination of braking resistors

Applications

  • Drives Case Studies — View our case studies site to discover how customers have applied Allen-Bradley drives products in their applications.
  • The PowerFlex® 700AFE Active Front End is an excellent solution for common bus or single drive applications that require AC line regeneration or low harmonics.

Certifications

  • cULus
  • CE marked for all applicable directives

Documentation

Base Drive Information

  • Frame Size: Frame Size 13
  • Enclosure Type: IP21, Nema/UL Type 1, Rittal Enclosure, AFE with conformal coating
  • Output Current Rating: 1300A, 1404HP ND (1242HP HD) @ 480V, 873kW ND (772kW HD) @ 400V
  • Input Voltage: 480 VAC, 3 PH

Installed Options

  • Feedback Option: None
  • IO Option: 24V DC Digital Inputs
  • Internal Communication Module: No Communication Module
  • Equipment Type: AFE w/ LCL Filter
  • Brake Resistor: Without Drive Mounted Brake Resistor
  • Brake IGBT: No Brake IGBT
  • Documentation: User Manual
  • Human Interface Module: No HIM (Blank Plate)

Overview

UPC 88495104001
Item Long Description PowerFlex 700 AFE Active Front End
GTiN 00884951040014
Voltage 480 Volt
Type Active Front End
Standard C-TICK,CE,CUL,GOST,KC,UL
Frequency 50-60 Hz
Input Voltage 480 V
Family Brand Name Allen Bradley
NEMA 1
Number of Phases 3 Phase
Enclosure Type IP21, NEMA/UL Type 1, Frame 13
Amperage 1150 Amp
Output Current 1300 A
IP Rating IP21
Enclosure IP21,UL-NEMA Type 1
Sub Brand PowerFlex 700AFE
Current 1300 A
