A-B 21AD034E3AYNANC0NNNN-ND-B0-C1-L

Specifications

Base Drive Information

• Input Voltage: 480 VAC, 3 PH (D)
• Drive Duty Cycle: Normal Duty Cycle (-ND)
• Output Current: 34 Amps (034)
• Enclosure: IP65 / NEMA 4 Outdoor (E)
• Frame Size: Frame Size D

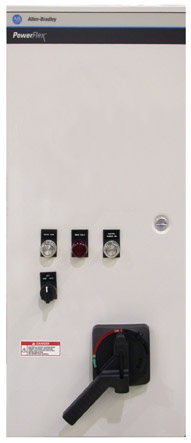

• Please Note: Any photos in this documentation are representative of the products supplied and may not be that of the actual unit shipping

Installed Options

• Human Interface Module: LCD Display, Full Numeric Keypad (3)
• Documentation: User Manual (A)
• Brake IGBT: Brake IGBT Installed (Y)
• Brake Resistor: Without Drive Mounted Brake Resistor (N)
• EMC Filtering Options: Second Environment Filter per CE EMC directive (89/336/EEC) (A)
• Internal Communication Module: No Communication Module (N)
• I/O: Enhanced Control 24VDC Basic I/O (C)
• Feedback option: Enhanced Control, without Encoder (0)

System Options

• Bypass Options: No Bypass (-B0)
• Input Power Devices: Drive Input Fuses (-P2)
• Power Filtering: Line Reactor, Mtd & Wired, 3%, Input (-L1)
• Control Power: Control Power for program options only (-C1)
