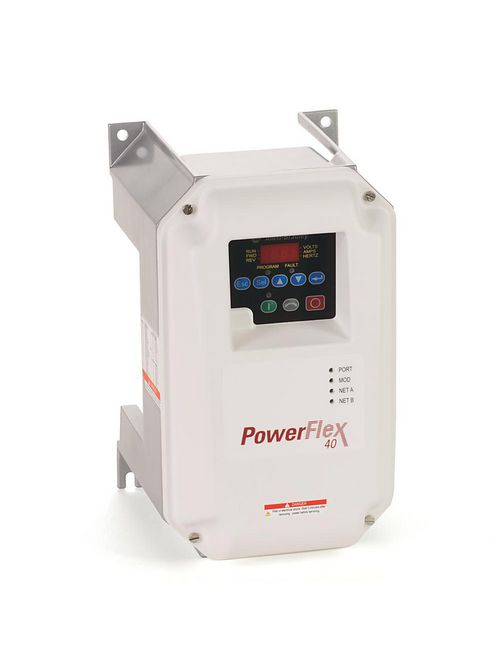

Allen-Bradley 22B-D2P3C104 Powerflex 40 0.75 kW 1 Hp AC Drive
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CDS
Mfg Catalog # 22B-D2P3C104
North Coast Part # 348642


  • Optional serial converter module for use with any controller with DF1 messaging
  • V/Hz and sensorless vector control, as well as process PID
  • Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
  • Integral RS-485 communication
  • StepLogic® allows operation as an independent position controller
  • Configuration and programming via integral LCD keypad, remote keypad, or software
  • Optional DeviceNet™, ControlNet™, and EtherNet/IP™, Profibus DP, BACnet™, and LonWorks® communication modules
  • Drive overload protection, ramp regulation, and flying start
  • Power ratings:
  • Zero Stacking™ Drives for ambient temperatures up to 40 °C (104°F)
  • Optional IP30 NEMA/UL Type 1 conversion kit
  • Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduce development time


  • Voltage Rating: 480VAC, 3PH
  • Enclosure: IP66 (NEMA 4X)

Base Drive Information

  • Input Voltage: 480VAC, 3PH
  • Output Current: 2.3 Amps
  • Enclosure Style: IP66 (NEMA 4X)
  • Frame Size: Frame Size B

Installed Options

  • Human Interface Module (Type): LED Display, Digital Keypad
  • EMC Filtering Options: No CE Compliant Filter
  • Internal Communication Module: RS485


UPC 82091967593
Item Long Description PowerFlex 40- 0.75 kW (1 HP) AC Drive
GTiN 00820919675935
Voltage 480 Volt
Type AC Drive
Input Voltage 480 V
Family Brand Name Allen Bradley
Power Rating 0.75 kW
TC Connection Fixed Terminal Block
Output Current 2.3 A
Power Factor 0.98
Enclosure IP66,UL-NEMA Type 4X
Sub Brand PowerFlex 40
Mounting Type Panel Mount
Frequency 50-60 Hz
Connection Type Fixed Terminal Block
