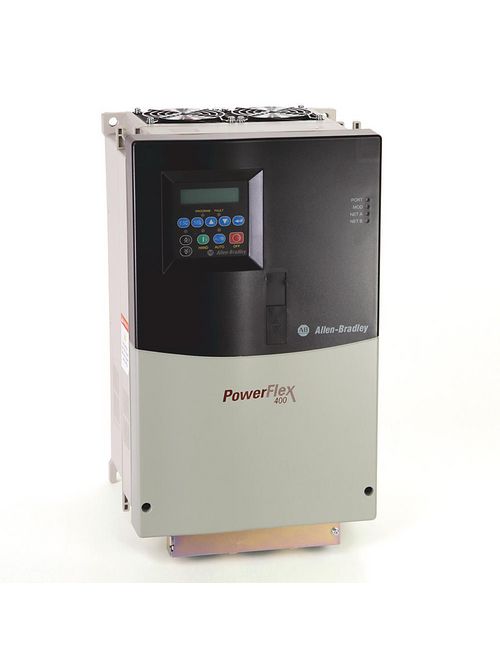

Allen-Bradley 22C-B120A103 Powerflex 400 30 kW 40 Hp AC Drive
Product image thumbnail 0
Product image thumbnail 1
$6,673.28/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CDS
Mfg Catalog # 22C-B120A103
North Coast Part # 155450

Features

  • Internal RS-485, Common Industrial Protocol (CIP), embedded Modbus® RTU, Metasys® N2, and Apogee® FLN P1-plant floor network protocols
  • Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
  • Packaged drive options include disconnect and contactor bypass packages
  • Drive overload protection, flying start, purge and damper input, hand/off/auto, and sleep/wake features
  • Power ratings:
  • Supports Drive Serial Interface (DSI) communication modules

Specifications

  • Voltage Rating: 240 (208) VAC, 3 PH
  • Enclosure: IP30 (NEMA 1 / UL Type 1)

Base Drive Information

  • Version Voltage Code: 240 (208) VAC, 3 PH
  • Output Current: 120 Amps
  • Human Interface Module: Fixed Keypad
  • Enclosure Style: IP30 (NEMA 1 / UL Type 1)
  • Version: RS485 (without Brake IGBT)
  • Frame Size: Frame Size E

Overview

UPC 82091923410
GTiN 00820919234101
Voltage 240 Volt
Type AC Drive
Family Brand Name Allen Bradley
Enclosure Type IP30, NEMA/UL Type 1
Power Rating 30 kW
TC Connection Fixed Terminal Block
Output Current 120 A
Power Factor 0.98
Enclosure IP30,UL-NEMA Type 1
Sub Brand PowerFlex 400
Standard C-TICK,CE,CUL,GOST,KC,UL
Frequency 50-60 Hz
Connection Type Fixed Terminal Block
