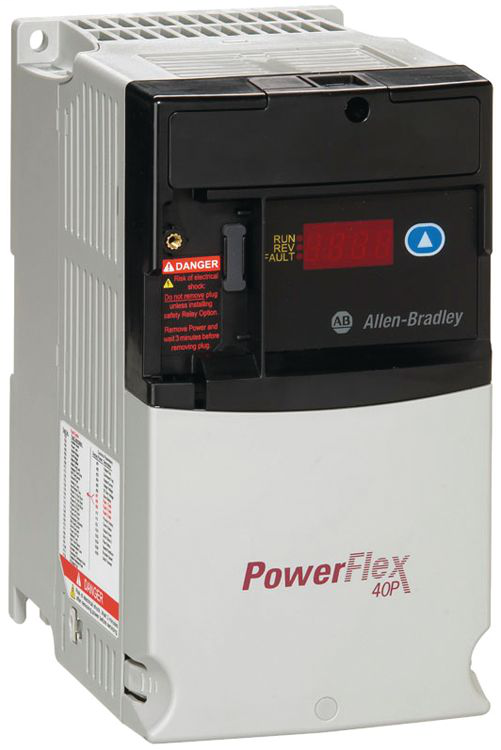

Allen Bradley 22D-B8P0N104 PowerFlex 40P 1.5 kW 2 Hp AC Drive
$1,590.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 22D-B8P0N104
North Coast Part # 600573

Features

  • Internal RS-485 and Common Industrial Protocol (CIP) communication
  • V/Hz control, sensorless vector control, as well as process PID
  • Drive overload protection, ramp regulation, and flying start
  • Optional Remote Human Interface Modules (HIM) or PC interface for programming
  • 4-digit display, 3 additional status indicators and scroll/reset button
  • Speed control with and without encoder feedback
  • Fiber application-specific features
  • Power ratings:
  • Optional IP30 NEMA/UL Type 1 conversion kit
  • Configuration and programming via integral LCD keypad, remote keypad, or software
  • Premier Integration with PowerFlex┬« AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
  • StepLogic┬« allows operation as an independent position controller

Specifications

  • Voltage Rating: 240 (208)VAC, 3PH
  • Enclosure: Panel Mount IP20 (NEMA Type Open)

Base Drive Information

  • Input Voltage: 240 (208)VAC, 3PH
  • Output Current: 8 Amps
  • Enclosure Style: Panel Mount IP20 (NEMA Type Open)
  • Frame Size: Frame Size B

Installed Options

  • Human Interface Module Version: Display w/ Reset Only
  • EMC Filtering Options: Without CE compliant filter
  • Internal Communication Module: Standard

Categories

Overview

UPC 82091965401
GTiN 00820919654015
Voltage 240 Volt
Type AC Drive
Family Brand Name Allen Bradley
Enclosure Type IP20/UL/NEMA Type Open, Frame B
Power Rating 1.5 kW
Control Type RS485
TC Connection Fixed Terminal Block
Output Current 8 A
Power Factor 0.98
Enclosure IP20,UL-NEMA Type Open
Sub Brand PowerFlex 40P
Mounting Type Panel Mount
Standard C-TICK,CE,CUL,GOST,KC,UL
Frequency 50-60 Hz
Connection Type Fixed Terminal Block
