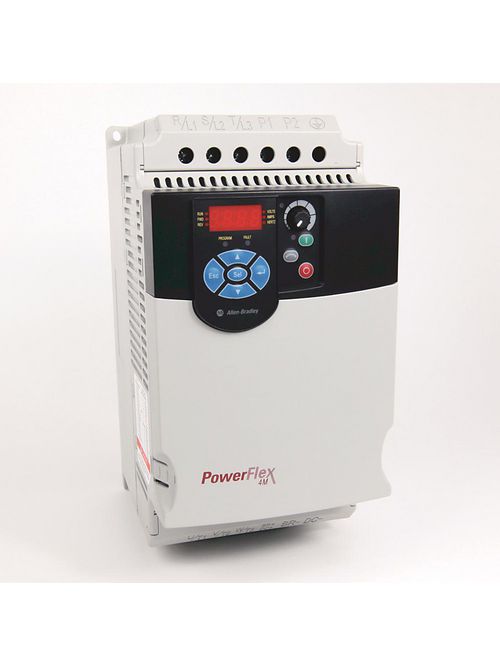

Allen-Bradley 22F-B033N104 Powerflex 4M 7.5 kW 10 Hp AC Drive
Product image thumbnail 0
Product image thumbnail 1
$1,346.63/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CDS
Mfg Catalog # 22F-B033N104
North Coast Part # 330950

Features

  • IP20, NEMA/UL open type enclosures V/Hz control, slip compensation
  • Integral RS-485 communications
  • Drive overload protection and ramp regulation
  • DIN rail mounting feature on A and B frame drives
  • Power ratings:
  • Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)
  • Feed-through wiring
  • Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
  • Configuration and programming via integral LCD keypad, remote keypad, or software
  • Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time

Specifications

  • Voltage Rating: 240 (208)VAC, 3PH

Base Drive Information

  • Input Voltage: 240 (208)VAC, 3PH
  • Output Current: 33 Amps
  • Enclosure Style: IP20 (Open)
  • Frame Size: Frame Size C

Installed Options

  • Human Interface Module (Type): LED Display, Fixed Digital Keypad
  • EMC Filtering Options: No CE Compliant Filter
  • Internal Communication Module: RS485

Overview

UPC 82091978515
GTiN 00820919785153
Voltage 240 Volt
Type AC Drive
Family Brand Name Allen Bradley
Enclosure Type IP20/UL/NEMA Type Open
Power Rating 7.5 kW
Control Type RS485
TC Connection Fixed Terminal Block
Output Current 33 A
Power Factor 0.98
Enclosure IP20,UL-NEMA Type Open
Sub Brand PowerFlex 4M
Mounting Type Panel Mount
Standard C-TICK,CE,CUL,GOST,KC,UL
Frequency 50-60 Hz
Connection Type Fixed Terminal Block
