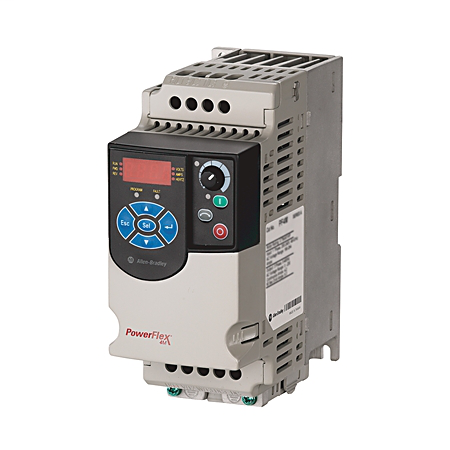

Allen-Bradley 22F-V2P5N103 Powerflex 4M 0.4 kW 0.5 Hp AC Drive
Product image thumbnail 0
Product image thumbnail 1
$373.07/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CDS
Mfg Catalog # 22F-V2P5N103
North Coast Part # 543677

Features

  • DIN rail mounting feature on A and B frame drives
  • Power ratings:
  • Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
  • Drive overload protection and ramp regulation
  • Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
  • Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)
  • IP20, NEMA/UL open type enclosures V/Hz control, slip compensation
  • Configuration and programming via integral LCD keypad, remote keypad, or software
  • Feed-through wiring
  • Integral RS-485 communications

Specifications

  • Voltage Rating: 120VAC, 1PH

Base Drive Information

  • Input Voltage: 120VAC, 1PH
  • Output Current: 2.5 Amps
  • Enclosure Style: IP20 (Open)
  • Frame Size: Frame Size A

Installed Options

  • Human Interface Module (Type): LED Display, Fixed Digital Keypad
  • EMC Filtering Options: No CE Compliant Filter
  • Internal Communication Module: No Brake Drive

Overview

UPC 82091978493
GTiN 00820919784934
Voltage 120 Volt
Type AC Drive
Applications Supporting Protocol for DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS
Input Voltage 120 V
Family Brand Name Allen Bradley
Enclosure Type IP20
Power Rating 0.4 kW
TC Connection Fixed Terminal Block
Output Current 2.5 A
Blade Dimensions 72 mm W x 136 mm D x 174 mm H
Power Factor 0.98
Enclosure IP20- NEMA/UL?Type Open
Sub Brand PowerFlex
Mounting Type Panel Mount
Standard C-TICK,CE,CUL,GOST,UL
Frequency 50-60 Hz
Connection Type Fixed Terminal Block
