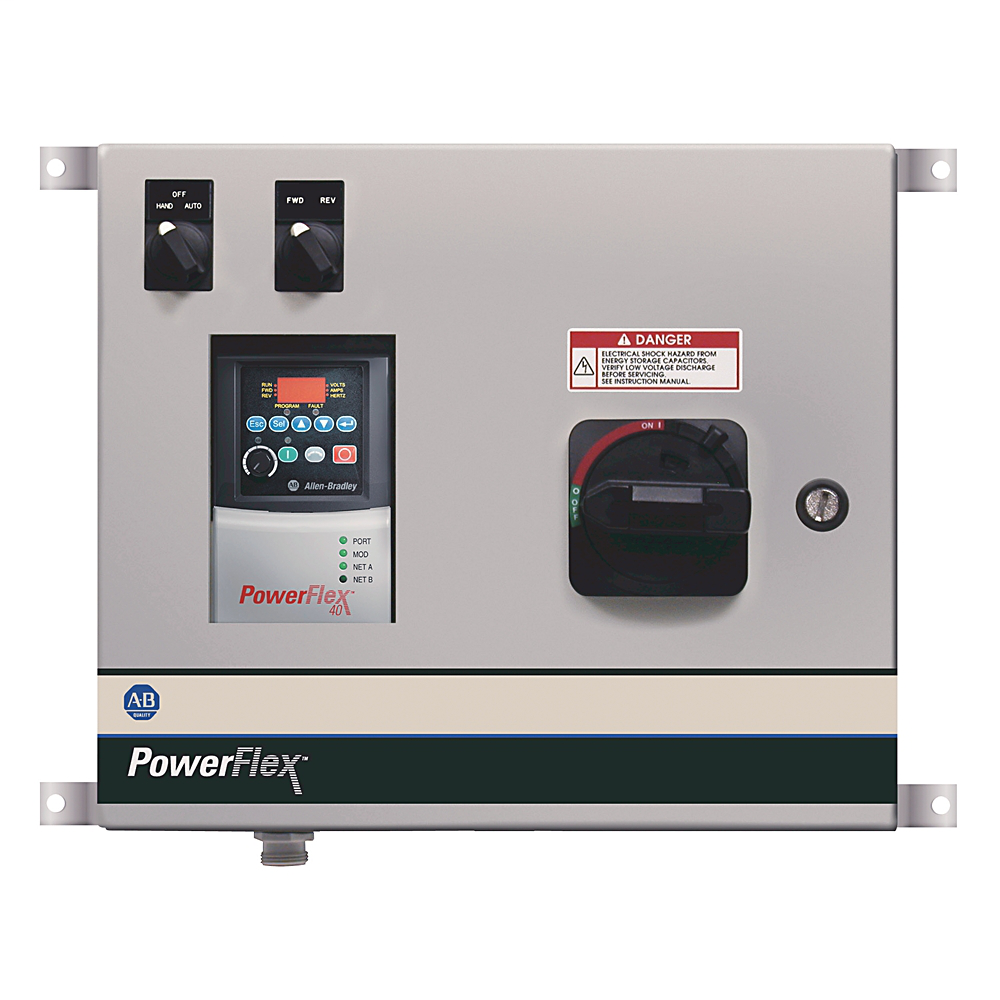

Allen Bradley 23B-D017C104NN AC Drive

Features

• Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduce development time
• Optional serial converter module for use with any controller with DF1 messaging
• StepLogic® allows operation as an independent position controller
• Configuration and programming via integral LCD keypad, remote keypad, or software
• V/Hz and sensorless vector control, as well as process PID
• Integral RS-485 communication
• Optional DeviceNet™, ControlNet™, and EtherNet/IP™, Profibus DP, BACnet™, and LonWorks® communication modules
• Zero Stacking™ Drives for ambient temperatures up to 40 °C (104°F)
• Optional IP30 NEMA/UL Type 1 conversion kit
• Power ratings:
• Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
• Drive overload protection, ramp regulation, and flying start

Specifications

• Enclosure: NEMA/UL Type 4X (C)
• Voltage Rating: 480VAC, 3PH (D)

Base Drive Information

• Input Voltage: 480VAC, 3PH (D)
• Output Current: 17 Amps (017)
• Frame Size: Frame Size C
• Enclosure Style: NEMA/UL Type 4X (C)
• Human Interface Module (Type): Fixed Keypad on Drive (1)
• Internal EMC Filtering: No CE Compliant Filter (0)
• Internal Communication Module: RS485 (Standard) (4)
