A-B 23B-D017D104NN PowerFlex 40 AC
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,196.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-IDB
Mfg Catalog # 23B-D017D104NN
North Coast Part # 821044

Features

  • Optional serial converter module for use with any controller with DF1 messaging
  • Zero Stacking™ Drives for ambient temperatures up to 40 °C (104°F)
  • Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
  • Configuration and programming via integral LCD keypad, remote keypad, or software
  • Integral RS-485 communication
  • Drive overload protection, ramp regulation, and flying start
  • Optional DeviceNet™, ControlNet™, and EtherNet/IP™, Profibus DP, BACnet™, and LonWorks® communication modules
  • StepLogic® allows operation as an independent position controller
  • Power ratings:
  • Optional IP30 NEMA/UL Type 1 conversion kit
  • Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduce development time
  • V/Hz and sensorless vector control, as well as process PID

Specifications

  • Enclosure: NEMA/UL Type 4 (D)
  • Voltage Rating: 480VAC, 3PH (D)

Base Drive Information

  • Input Voltage: 480VAC, 3PH (D)
  • Output Current: 17 Amps (017)
  • Frame Size: Frame Size C
  • Enclosure Style: NEMA/UL Type 4 (D)
  • Human Interface Module (Type): Fixed Keypad on Drive (1)
  • Internal EMC Filtering: No CE Compliant Filter (0)
  • Internal Communication Module: RS485 (Standard) (4)

Overview

UPC 82091948640

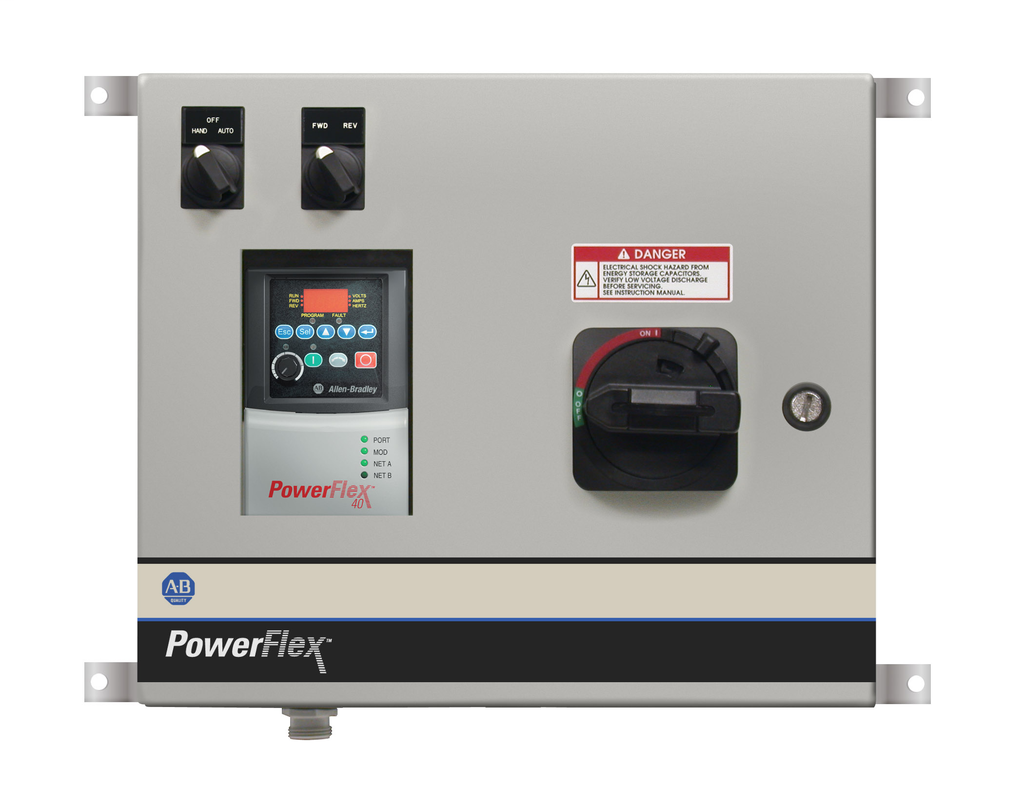

Item Long Description PowerFlex 40 AC Packaged Drive
GTiN 00820919486401
Size C Frame
Voltage 480 Volt
Type PowerFlex 40 AC Packaged Drive
Input Voltage 480 V
Family Brand Name Allen Bradley
Output Current 17 A
Enclosure IP66/NEMA 4 Wall
Display Type Fixed Keypad
Current 17 A
