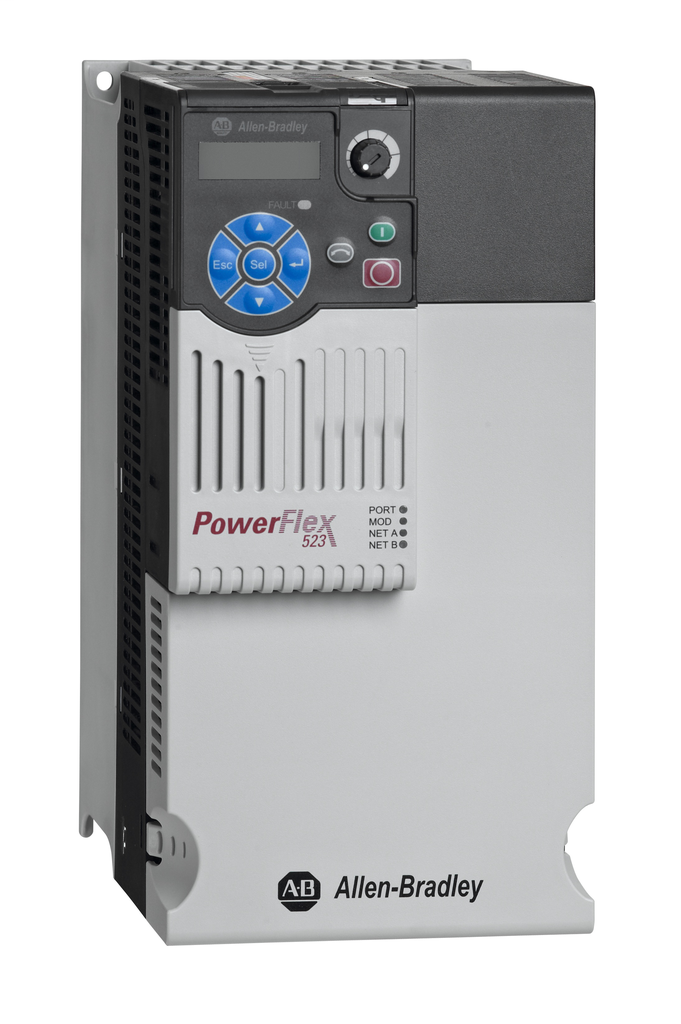

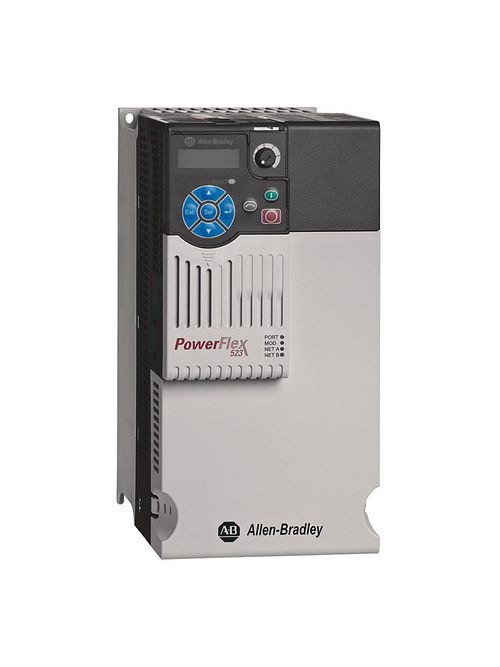

Allen Bradley 25A-B032N104 PowerFlex 523 3-Phase 240 Volt 10 Hp IP20 AC Drive
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CDS
Mfg Catalog # 25A-B032N104
North Coast Part # 936994


  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Supports low-cost networking through an integrated RS485/DSI port
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode


  • Sub Brand: PowerFlex 523 AC Drive

Base Drive Information

  • Bulletin Number: PowerFlex 523 AC Drive
  • Voltage Class: 240 VAC, 3 Phase
  • Output Current: 32 Amps
  • Enclosure Type: IP20 NEMA / Open Type
  • Frame Size: Frame D
  • Interface Module: Standard
  • EMC Filtering Options: No Filter

Additional Details

  • Input: Three Phase 200-240V


UPC 88563070485
Item Long Description PowerFlex 523 7.5kW (10Hp) AC Drive
GTiN 00885630704852
Width 130
Size D
Voltage 240 Volt
Type AC Drive
Depth 212
Temperature Rating -20 to 50 C
Family Brand Name Allen Bradley
Enclosure Type Frame D
Power Rating 7.5 kW
Output 32Amp
Output Current 32 A
Blade Dimensions 130 mm W x 212 mm D
IP Rating IP20
Environmental Conditions -20 to 50 C
Sub Brand PowerFlex 523
Wattage 7.5 kW
