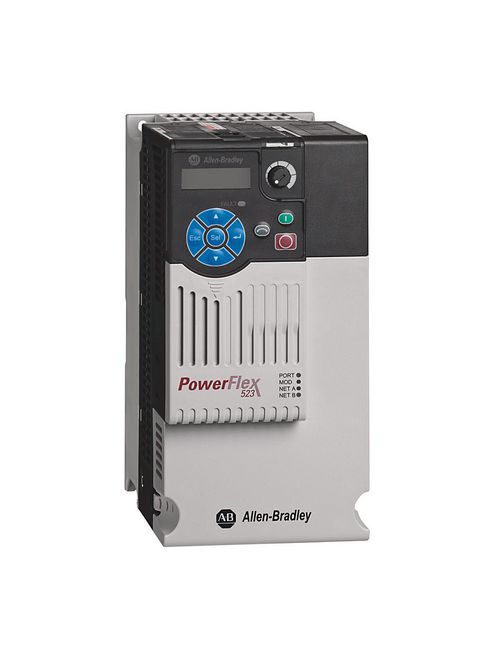

Allen-Bradley 25A-D013N104 480 VAC 13 Amp 3-Phase AC Drive
Product image thumbnail 0
Product image thumbnail 1
$1,266.83/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CDS
Mfg Catalog # 25A-D013N104
North Coast Part # 931354

Features

  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
  • Supports low-cost networking through an integrated RS485/DSI port

Specifications

  • Sub Brand: PowerFlex 523 AC Drive

Base Drive Information

  • Bulletin Number: PowerFlex 523 AC Drive
  • Voltage Class: 480 VAC, 3 Phase
  • Output Current: 13 Amps
  • Enclosure Type: IP20 NEMA / Open Type
  • Frame Size: Frame C
  • Interface Module: Standard
  • EMC Filtering Options: No Filter

Additional Details

  • Input: Three Phase 380-480V

Overview

UPC 88563070253
GTiN 00885630702537
Width 109
Size C
Voltage 480 Volt
Type AC Drive
Applications Supporting Protocol for DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, Industrial Applications, DeviceNet Safety
Depth 184
Family Brand Name Allen Bradley
Enclosure Type NEMA 1, IP20
Power Rating 5.5 kW
Output 1 Analog
Output Current 13 A
Blade Dimensions 109 mm W x 184 mm D x 220 mm H
IP Rating IP20
Environmental Conditions -20 to 50 C
Sub Brand PowerFlex 523
Standard C-TICK,CE,CUL,GOST,KC,UL
Wattage 5.5 kW
