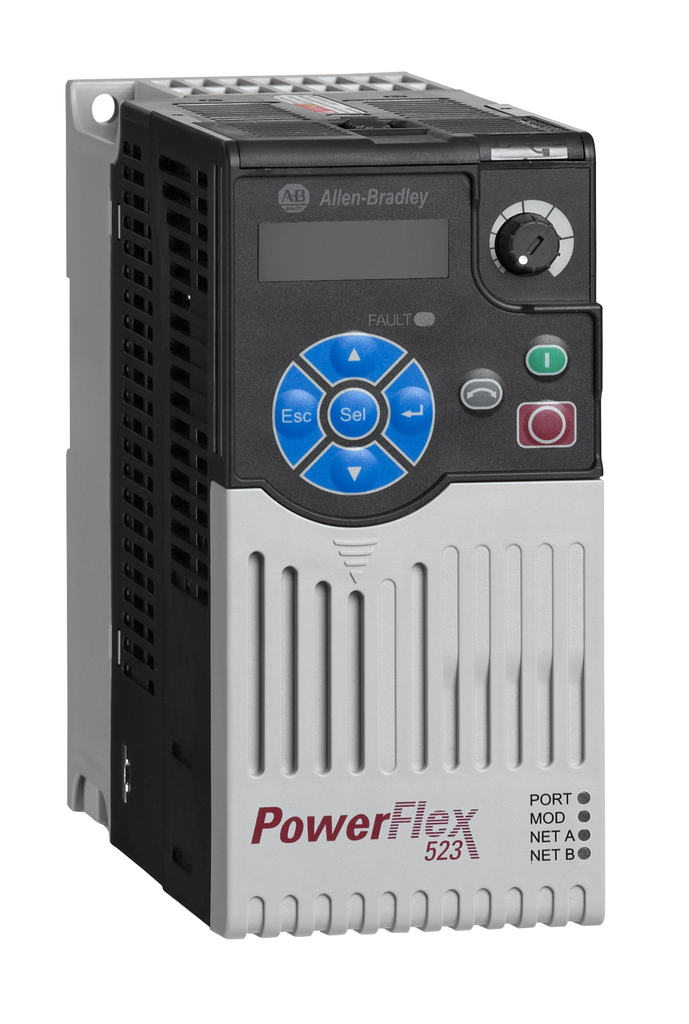

Allen-Bradley 25A-D6P0N114 Powerflex 523 3-Phase 480 VAC 3 Hp AC Drive
Product image thumbnail 0
Product image thumbnail 1
$900.74/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CDS
Mfg Catalog # 25A-D6P0N114
North Coast Part # 940520

Features

  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
  • Supports low-cost networking through an integrated RS485/DSI port

Specifications

  • Sub Brand: PowerFlex 523 AC Drive

Base Drive Information

  • Bulletin Number: PowerFlex 523 AC Drive
  • Voltage Class: 480 VAC, 3 Phase
  • Output Current: 6 Amps
  • Enclosure Type: IP20 NEMA / Open Type
  • Frame Size: Frame A
  • Interface Module: Standard
  • EMC Filtering Options: Filter

Additional Details

  • Input: Three Phase 380-480V

Overview

UPC 88563070258
GTiN 00885630702582
Width 72
Size A
Voltage 480 Volt
Type AC Drive
Depth 172
Family Brand Name Allen Bradley
Output 6Amp
Output Current 6 A
IP Rating IP20
Environmental Conditions -20 to 50 C
Sub Brand PowerFlex 523 AC Drive
Standard C-TICK,CCC,CE,CUL,GOST,KC,UL
Wattage 2.2 kW
