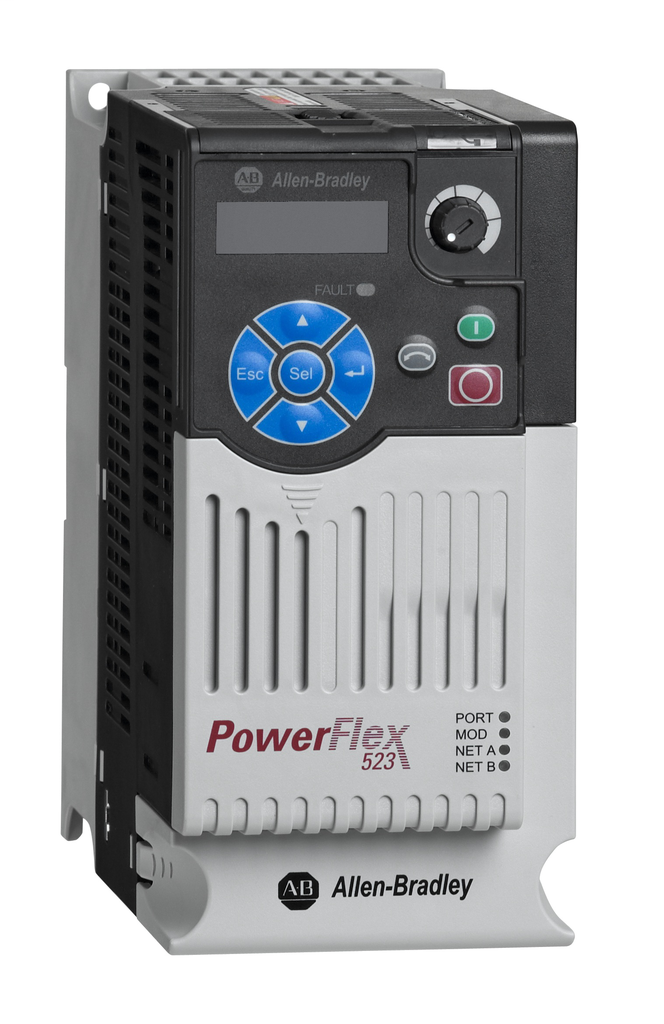

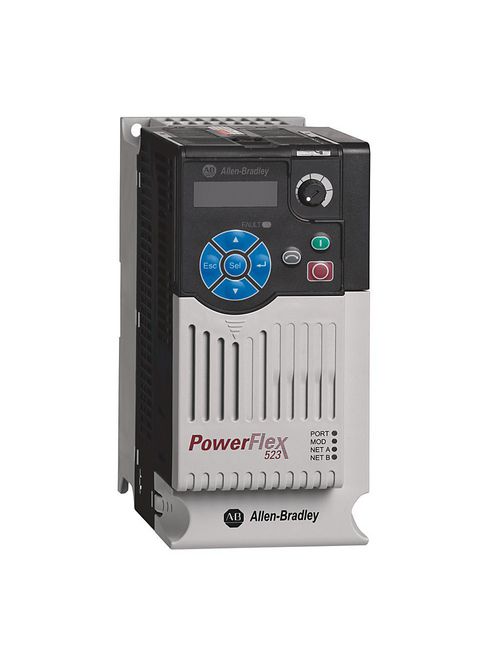

Allen-Bradley 25A-V6P0N104 Powerflex 523 1.1 kW 1.5 Hp AC Drive
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CDS
Mfg Catalog # 25A-V6P0N104
North Coast Part # 934328


  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
  • Supports low-cost networking through an integrated RS485/DSI port
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive


  • Sub Brand: PowerFlex 523 AC Drive

Base Drive Information

  • Bulletin Number: PowerFlex 523 AC Drive
  • Voltage Class: 120 VAC, 1 Phase
  • Output Current: 6 Amps
  • Enclosure Type: IP20 NEMA / Open Type
  • Frame Size: Frame B
  • Interface Module: Standard
  • EMC Filtering Options: No Filter

Additional Details

  • Input: Single Phase 100-120V


UPC 88563070093
Item Long Description PowerFlex 523 1.1kW (1.5Hp) AC Drive
GTiN 00885630700939
Width 87
Size B
Voltage 120 Volt
Type AC Drive
Applications Supporting Protocol for DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS
Depth 172
Family Brand Name Allen Bradley
Enclosure Type NEMA 1, IP20
Power Rating 1.1 kW
Output 6Amp
Output Current 6 A
Blade Dimensions 87 mm W x 172 mm D x 180 mm H
IP Rating IP20
Environmental Conditions -20 to 50 C
Sub Brand PowerFlex 523
Wattage 1.1 kW
