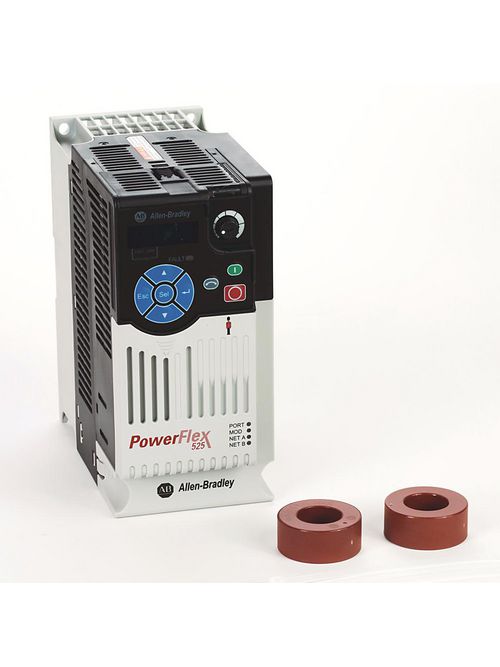

Allen Bradley 25B-A011N114 PowerFlex 525 2.2 kW 3 Hp AC Drive
Product image thumbnail 0
Product image thumbnail 1
$935.66/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CDS
Mfg Catalog # 25B-A011N114
North Coast Part # 878424

Features

  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Features Safe Torque-off which is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.
  • Provides permanent magnet motor control to help improve energy efficiency and reduce related costs
  • Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm airflow gap
  • Supports seamless integration into the Logix environment and EtherNet/IP networks with built-in EtherNet/IP™
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and closed loop velocity vector control
  • Operates in high ambient temperatures up to 70 °C (158 °F) with current derating and a control module fan kit

Specifications

  • Sub Brand: PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety

Base Drive Information

  • Bulletin Number: PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety
  • Voltage Class: 240 VAC, 1 Phase
  • Output Current: 11 Amps
  • Enclosure Type: IP20 NEMA / Open Type
  • Frame Size: Frame B
  • Interface Module: Standard
  • EMC Filtering Options: Filter

Additional Details

  • Input: Single Phase 200-240V

Overview

UPC 88495188567
GTiN 00884951885677
Size Frame B
Voltage 240 Volt
Type AC Drive
Family Brand Name Allen Bradley
Power Rating 2.2 kW
TC Connection Fixed Terminal Block
Output Current 11 A
IP Rating IP20
Power Factor 0.98
Enclosure IP20,UL-NEMA Type Open
Sub Brand PowerFlex 525
Mounting Type Panel Mount
Standard C-TICK,CCC,CE,CUL,GOST,KC,MARINE,UL
Frequency 50-60 Hz
Connection Type Fixed Terminal Block
Enclosure Type Frame B, IP20, UL-NEMA Type Open
Control Type EtherNet IP-USB-RS485
