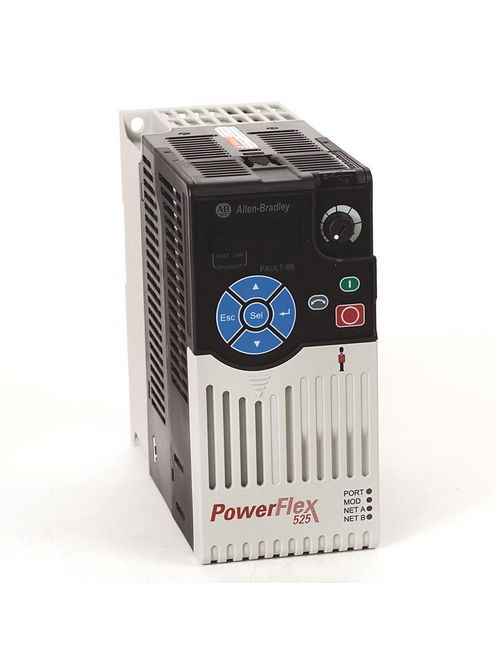

Allen-Bradley 25B-B8P0N104 Powerflex 525 1.5 kW (2 Hp) AC Drive
Product image thumbnail 0
Product image thumbnail 1
$929.67/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CDS
Mfg Catalog # 25B-B8P0N104
North Coast Part # 880974

Features

  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Operates in high ambient temperatures up to 70 °C (158 °F) with current derating and a control module fan kit
  • Features Safe Torque-off which is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.
  • Provides permanent magnet motor control to help improve energy efficiency and reduce related costs
  • Supports seamless integration into the Logix environment and EtherNet/IP networks with built-in EtherNet/IP™
  • Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm airflow gap
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and closed loop velocity vector control

Specifications

  • Sub Brand: PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety

Base Drive Information

  • Bulletin Number: PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety
  • Voltage Class: 240 VAC, 3 Phase
  • Output Current: 8.0 Amps
  • Enclosure Type: IP20 NEMA / Open Type
  • Frame Size: Frame A
  • Interface Module: Standard
  • EMC Filtering Options: No Filter

Additional Details

  • Input: Three Phase 200-240V

Overview

UPC 88495188571
GTiN 00884951885714
Size Frame A
Voltage 240 Volt
Type AC Drive
Applications Supporting Protocol for DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS
Family Brand Name Allen Bradley
Enclosure Type NEMA 1, IP20
Power Rating 1.5 kW
TC Connection Fixed Terminal Block
Output 1 Analog, 2 Digital
Output Current 8.0 A
Blade Dimensions 72 mm W x 172 mm D x 152 mm H
IP Rating IP20
Power Factor 0.98
Enclosure IP20,UL-NEMA Type Open
Sub Brand PowerFlex 525
Mounting Type Panel Mount
Standard C-TICK,CE,CUL,GOST,KC,MARINE,UL
Frequency 50-60 Hz
Connection Type Fixed Terminal Block
