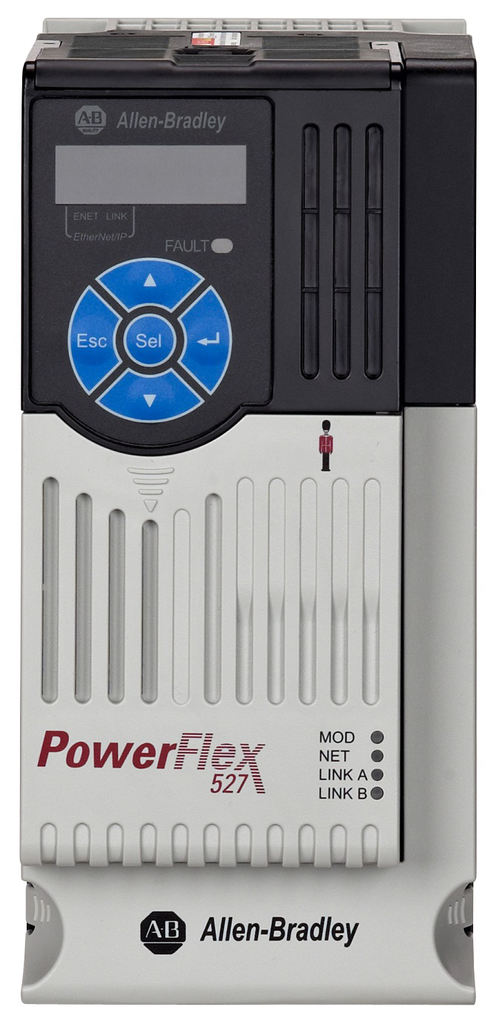

Allen-Bradley 25C-A8P0N114 PowerFlex 527 1.5k
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 25C-A8P0N114
North Coast Part # 1437472


  • Reduces downtime and minimizes manual reconfiguration by using Logix PACs to detect a replaced drive and download all configuration settings over EtherNet/IP
  • Offers low-cost solution for machine parts, applications such as pumps, fans, in-feed and out-feed conveyors, that need simple speed control for induction motors
  • Offers a new level of AC drive integration to help deliver a coordinated and synchronized machine
  • Provides the ability to transfer drive configuration files to a new machine
  • Offers built-in dual-port EtherNet/IP™ to support a variety of topologies as well as Device Level Ring functionality
  • Features Safe Torque-off as a standard feature that can be applied through either hardwired safety or Integrated Safety. Both are certified to SIL 3 / PLe Cat 3


  • Sub Brand: PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety

Base Drive Information

  • Bulletin Number: PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety
  • Voltage Class: 240 VAC, 1 Phase
  • Output Current: 8 Amps
  • Enclosure Type: IP20 NEMA / Open Type
  • Frame Size: Frame B
  • Interface Module: Standard
  • EMC Filtering Options: Filter

Additional Details

  • Input: Single Phase 200-240V



UPC 88717253016
GTiN 00887172530166
Size B
Voltage 240 Volt
Type AC Drive
Applications AC Drive, 1.5 kW (2 Hp), 200-240V AC Input, 50 Hz/60 Hz, Single-Phase, 8Amp, B Frame, Panel Mounting, IP20/NEMA Open Type, with EMC Filter, with 7th IGBT Brake
Temperature Rating -20 to 50 C
Family Brand Name Allen Bradley
Enclosure Type IP20, NEMA Open Type, Frame B
Power Rating 1.5 kW
Control Type Integrated Motion with Ethernet/IP
Output 8Amp
Output Current 8 A
IP Rating IP20
Sub Brand PowerFlex 527
Wattage 1.5 kW
