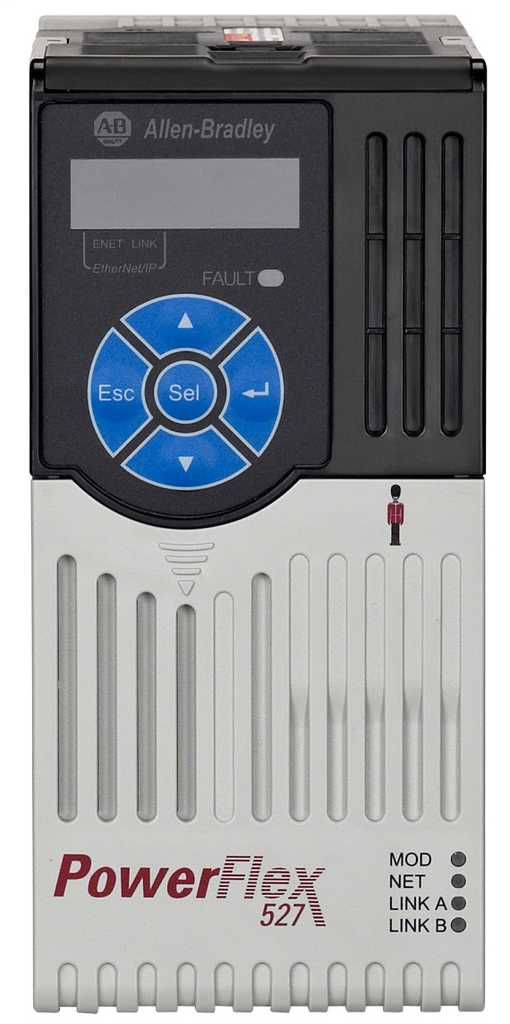

A-B 25C-B011N104 PowerFlex 527 2.2k
$1,200.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 25C-B011N104
North Coast Part # 1433679

Features

  • Offers a new level of AC drive integration to help deliver a coordinated and synchronized machine
  • Features Safe Torque-off as a standard feature that can be applied through either hardwired safety or Integrated Safety. Both are certified to SIL 3 / PLe Cat 3
  • Reduces downtime and minimizes manual reconfiguration by using Logix PACs to detect a replaced drive and download all configuration settings over EtherNet/IP
  • Offers built-in dual-port EtherNet/IP™ to support a variety of topologies as well as Device Level Ring functionality
  • Offers low-cost solution for machine parts, applications such as pumps, fans, in-feed and out-feed conveyors, that need simple speed control for induction motors
  • Provides the ability to transfer drive configuration files to a new machine

Specifications

  • Sub Brand: PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety

Base Drive Information

  • Bulletin Number: PowerFlex 527 AC Drive, with Embedded Dual Port EtherNet/IP and Integrated Safety
  • Voltage Class: 240 VAC, 3 Phase
  • Output Current: 11 Amps
  • Enclosure Type: IP20 NEMA / Open Type
  • Frame Size: Frame A
  • Interface Module: Standard
  • EMC Filtering Options: No Filter

Additional Details

  • Input: Three Phase 200-240V

Categories

Overview

UPC 88717253021
GTiN 00887172530210
Size A
Voltage 240 Volt
Type AC Drive
Applications AC Drive, 2.2 kW (3 Hp), 200-240V AC Input, 50 Hz/60 Hz, Three-Phase, 11Amp, A Frame, Panel Mounting, IP20/NEMA Open Type, with 7th IGBT Brake
Temperature Rating -20 to 50 C
Family Brand Name Allen Bradley
Output 11Amp
Output Current 11 A
IP Rating IP20
Sub Brand PowerFlex 527 AC Drive
Standard C-TICK,CE,CUL,KC,UL
Wattage 2.2 kW
