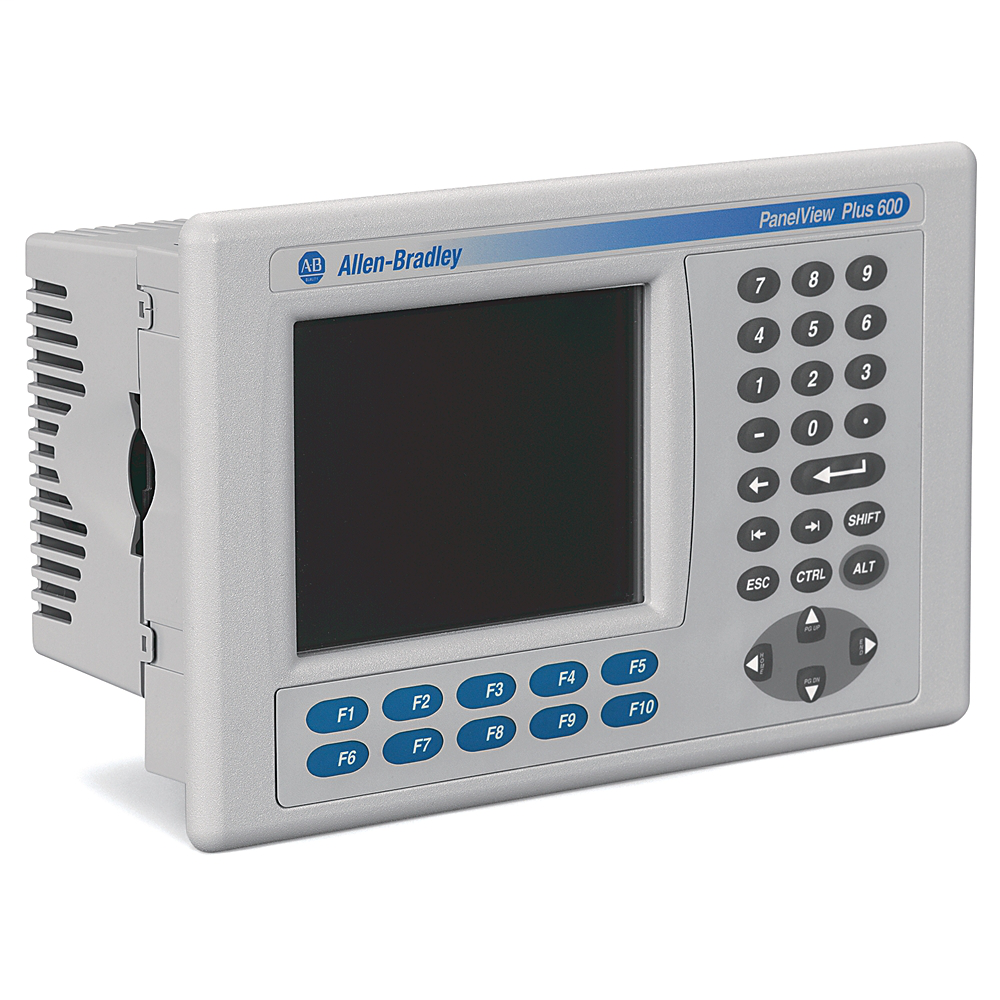

Allen Bradley 2711P-B6C20D8 PanelView Plus 600 Color Key Touch Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,359.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-EOI
Mfg Catalog # 2711P-B6C20D8
North Coast Part # 879435

Features

  • Supports DataStore Plus logging and trending, which eliminates the 300,000 data point limit
  • Offers backup restore functionality
  • Integrates with third-party software such as Microsoft® Internet Explorer® and Microsoft Office Viewers
  • Provides significant improvements over the PanelView™ Plus 400 graphic terminals
  • Provides remote recipe and data management through .CSV files
  • Includes built-in PDF viewer for context-sensitive operator support
  • Supports operator input via keypad (22 function keys), via touch screen or via keypad and touch screen
  • Includes a 15 in. flat-panel color display with 1024 x 768 resolution (minimum) and 18-bit graphics
  • Uses vector-based graphics from Symbol Factory
  • Includes a 12.1 in. flat-panel color display with 800 x 600 resolution (minimum) and 18-bit graphics
  • Supports ActiveX® Controls
  • Supports remote connectivity (VNC and FTP)

Specifications

  • Sub Brand: PanelView Plus 6
  • Model: PVP6 Standard Edition

Panelview Plus 6 Data

  • Product Selection: PanelView Plus 6
  • Monitor Size: 6.0-inch TFT Displays
  • DisplayType: Color (TFT)
  • Input Type: Keypad/Touch
  • Communication: Ethernet and RS-232 Communication
  • Power: DC Input
  • Flash/RAM or Operating System: Windows CE 6.0

Accessories

  • Network Media: Male RJ45 to RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m

Accessories

  • 1585J-M8TBJM-1M9

Overview

UPC 88495134416
Item Long Description PV Plus 6 600 Color Key Touch Terminal
GTiN 00884951344167
Type Wall/Direct Mount
Applications For EtherNet/IP
Temperature Rating 0 - 55 C
Family Brand Name Allen Bradley
Blade Dimensions 266 mm W x 68 mm D x 167 mm H
Memory 524288 KB
Sub Brand PanelView Plus 6
Voltage 30 Volt
Standard C-TICK,CCC,CE,CUL,KC,UL
Power Type DC
Display Type Color (TFT)
